Description

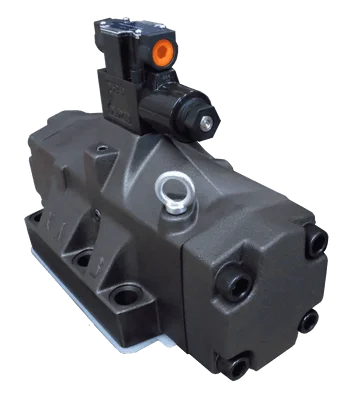

Yuken D10 2-Position Energized-Open 24VDC Ext-Pilot/Int (DSHG-10-2B3A-ET-D24-4390) is a high-performance pilot-operated directional valve designed to optimize fluid control in hydraulic systems. It features a 2-position energized-open design and operates using a 24VDC power source with both external and internal pilot configurations.
With a maximum operating pressure of up to 31.5MPa (4,570psi) and a flow rate capacity of up to 1,100L/min (291gal/min), this D10 2-position valve is built to CETOP D10 standards, ensuring high durability and efficient operation.
- Specifications and Dimensions
- Weight: 110 lbs
- Max Operating Pressure: 31.5MPa (4,570psi)
- Max Flow Rate: 1,100L/min (291gal/min)
- Design Type: CETOP D10 solenoid directional 2-stage valve
- Operating Voltage: 24Vdc
- Configuration: Energized-Open, 2-Position
- Pilot Type: External/Internal
- Country of Origin: Japan
- US Customs Harmonized Code: 8481.20.0020
- Key Features and Benefits
- Dual pilot configuration for versatile control (external and internal)
- Meets CETOP D10 standards for compatibility and reliability
- Robust build quality ensures extended operational life
- Optimized for high-performance fluid control in hydraulic applications
