Description

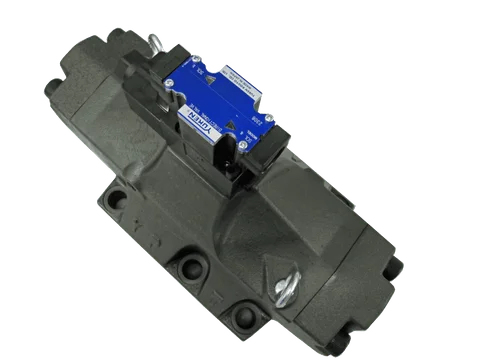

Yuken D10 2-Position Energized-Open 240VAC T-Box (DSHG-10-2B3A-A240-4390) is a reliable and efficient pilot-operated directional valve designed for high-pressure applications. Operating with a 240VAC power supply, this valve uses a 2-position energized-open configuration, making it ideal for controlling fluid flow in complex hydraulic systems.
This Yuken energized-open pilot valve offers a maximum operating pressure of up to 31.5MPa (4,570psi) and supports a high flow rate of up to 1,100L/min (291gal/min). Built to CETOP D10 standards, this valve integrates seamlessly with other hydraulic components, providing reliable and efficient performance.
- Specifications and Dimensions
- Weight: 110 lbs
- Max Operating Pressure: 31.5MPa (4,570psi)
- Max Flow Rate: 1,100L/min (291gal/min)
- Design Type: CETOP D10 solenoid directional 2-stage valve
- Operating Voltage: 240VAC
- Configuration: Energized-Open, 2-Position
- Country of Origin: Japan
- US Customs Harmonized Code: 8481.20.0020
- Key Features and Benefits
- 2-position energized-open design for fluid control and safety
- 240VAC T-Box setup for secure and easy connections
- Meets CETOP D10 standards for compatibility and reliability
- Robust build quality for extended operational life
