Description

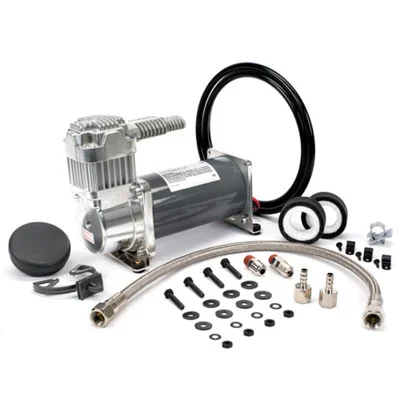

VIAIR 330C Hg 200 PSI Series Compressor Kit (33035) is a 12V air compressor with a 100% duty cycle at 100 PSI and a max working pressure of 200 PSI. Equipped with an intercooler head, it ensures optimal cooling performance, a max air tank size of 5 gallons, and an IP67 ingress protection rating.
The 12V compressor kit features a thermal overload protector, stainless steel braided leader hose, and comprehensive mounting hardware for smooth operation. It’s an excellent choice for reliable tire inflation and pneumatic applications.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Duty Cycle: 50% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 14 Amps
- Ingress Protection Rating: IP67
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -40°F
- Dimensions: 9″L x 4″W x 6.75″H
- Net Weight: 8.25 lbs.
- Maximum Power: 0.2 Horsepower
- Material: Stainless Steel
- Key Features and Benefits
- 100% duty cycle at 100 PSI and a max working pressure of 200 PSI.
- Intercooler head ensures optimal cooling performance.
- 5-gallon max air tank size provides ample air supply.
- Thermal overload protector prevents overheating.
- IP67-rated sealed design for enhanced weather resistance and durability.
- Vibration isolators ensure smooth operation.
- Includes
- Thermal Overload Protector
- Vibration Isolators
- Mounting Hardware
- Heavy Duty 1/4″ NPT Check Valve
- Stainless Steel Braided PTFE-Lined Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
