Description
VIAIR 325C Silver Compressor Kit (32538) is a 24V air compressor designed for optimal tire inflation with a 33% duty cycle at 100 PSI and a max working pressure of 150 PSI. It features a max air tank size of 5 gallons, IP67 ingress protection rating, and a 1/4″ NPT intake port.
The VIAIR compressor kit comes with a thermal overload protector and vibration isolators for smooth operation. The stainless steel braided leader hose and comprehensive mounting hardware make it easy to install.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23 Amps
- Max. 24V Amp Draw: 13 Amps
- 1/4″ NPT Intake Port
- Ingress Protection Rating: IP67
- Dimensions: 8″L x 4″W x 6.75″H
- Net Weight: 7.5 lbs.
- Key Features and Benefits
- 33% duty cycle at 100 PSI and a max working pressure of 150 PSI.
- 5-gallon max air tank size provides ample air supply.
- Thermal overload protector prevents overheating.
- IP67-rated sealed design for enhanced weather resistance and durability.
- Remote mount air filter assembly and replacement air filter elements included.
- Vibration isolators ensure smooth operation.

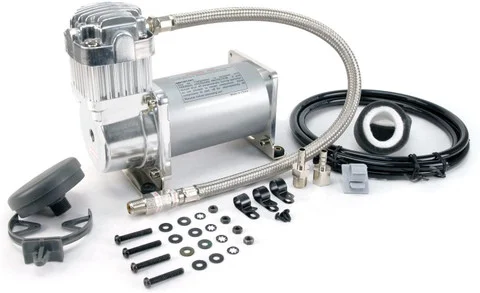

- Includes
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
