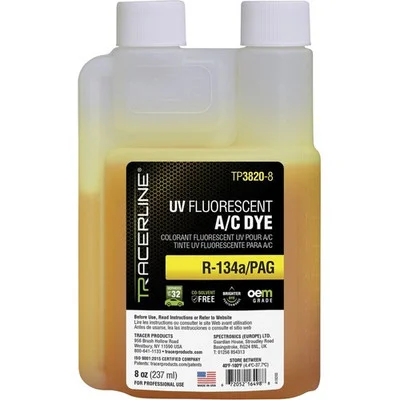

Tracerline 8oz R-134a/PAG UV Fluorescent A/C Dye (TP3820-8)

Description

The Tracerline 8oz R-134a/PAG UV Fluorescent A/C Dye (TP3820-8) is a professional-grade solution engineered for precise leak detection in R-134a automotive air conditioning systems that use PAG oil. This highly concentrated, co-solvent-free dye is recognized as an OEM-grade product, ensuring it meets the stringent standards of vehicle manufacturers. When introduced into an A/C system, the dye circulates with the refrigerant, escaping at any leak point. Under inspection with a UV or blue light lamp, the dye fluoresces a vivid yellow-green, clearly marking the exact location of the leak. Its superior stability and extended shelf life make it a reliable choice for workshops and technicians. With an impressive service capacity of up to 32 vehicles per 8oz bottle, the TP3820-8 offers an efficient and cost-effective method for identifying and resolving A/C leaks, helping to restore system performance.

KEY FEATURES AND BENEFITS:

• R-134a/PAG System Compatibility: Specifically formulated for R-134a automotive A/C systems utilizing PAG (Polyalkylene Glycol) oil, ensuring optimal performance and compatibility.
• OEM Grade & Approved: Meets or exceeds original equipment manufacturer standards, with Tracerline dyes often factory-installed, assuring quality and reliability.
• Co-Solvent Free Formulation: This crucial feature prevents any adverse effects on the system lubricant’s viscosity or lubricity, maintaining the A/C system’s integrity. It’s certified to meet SAE J2297.
• High Concentration, High Capacity: An 8oz bottle is highly concentrated, capable of servicing up to 32 vehicles, providing excellent value and efficiency for professional use.
• Brilliant Fluorescence: Emits a bright yellow-green glow under UV or blue light, making even small, difficult-to-find leaks clearly visible and speeding up diagnostic time.
• Enhanced Stability & Shelf Life: Designed to be more tolerant of extreme temperatures and moisture, extending its shelf life up to 5 years, reducing waste and ensuring readiness.

SPECIFICATIONS:

• Part Number: TP3820-8
• Compatible Fluid Type: R-134a Refrigerant
• Series: UV Fluorescent
• Standards: Meets or exceeds SAE J2297
• Flash Point (F): 40 Degrees F
• Boiling Point: 392 Degrees F
• Specific Gravity: 0.96
• Viscosity @ 40 Deg C: 13.5 cSt
• Viscosity @ 100 Deg C: 3.3 cSt
• Included: One 8 oz (237 ml) bottle of dye.

HOW TO USE:

1. Prepare the System: Ensure the A/C system is properly charged with R-134a refrigerant.
2. Add Dye: Using a suitable dye injector (refillable inline or syringe type), add the recommended amount of Tracerline TP3820-8 dye into the low-side service port of the A/C system. Refer to the vehicle’s service manual or dye product instructions for precise dosage.
3. Circulate Dye: Run the vehicle’s A/C system for at least 15–30 minutes to allow the dye to fully circulate with the refrigerant and oil throughout the system. This ensures the dye reaches any potential leak sites.
4. Inspect for Leaks: With a UV or blue light inspection lamp (and fluorescence-enhancing glasses, if available), scan all A/C components, hoses, fittings, and connections. Pay close attention to areas that show signs of oil residue or discoloration.
5. Identify Leaks: Any leaks will be clearly visible as a bright yellow-green glow where the dye has escaped.
6. Repair and Verify: Once the leak is found, perform the necessary repairs. After repair, it’s recommended to re-inspect the area to confirm the leak has been sealed.

BENEFITS OF USING TRACERLINE 8OZ R-134A/PAG UV FLUORESCENT A/C DYE (TP3820-8):

• Saves time by quickly pinpointing the exact source of A/C leaks, eliminating guesswork.
• Reduces repair costs by preventing unnecessary part replacements and ensuring efficient fixes.
• Improves customer satisfaction by providing reliable and lasting A/C system repairs.
• Maintains the integrity of the A/C system by using a co-solvent-free formula that doesn’t compromise lubricant quality.
• Offers a long-term, dependable solution for leak detection with its stable and long-lasting formula.
• Helps protect the environment by enabling precise repairs that prevent refrigerant escape.

FEATURES:

• Concentrated formula designed for high service capacity.
• Fluoresces brightly under ultraviolet light for clear visibility.
• Formulated to be safe for R-134a PAG A/C systems.
• Resistant to degradation from temperature and moisture.
• Compact 8oz bottle size for easy handling and storage.
• Suitable for use with various dye injection methods.
• Manufactured by an industry leader in leak detection technology.
