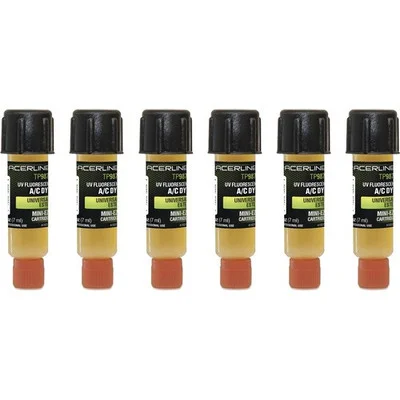

Tracerline 6pcs 0.25oz Mini-EZ Universal/Ester Cartridge (TP9875-P6)

Description

The Tracerline 6pcs 0.25oz Mini-EZ Universal/Ester Cartridge (TP9875-P6) is a reliable and effective solution for pinpointing leaks in automotive air conditioning systems. The TP9875-P6 kit includes six single-dose cartridges of a high-quality, fluorescent dye that is universally compatible with a wide range of refrigerants, including R-134a and the newer R-1234yf. Designed for use with the EZ-Ject dye injector, each cartridge provides a precise dose to service one vehicle. Once injected, the dye circulates through the A/C system, and any leaks become visible as a bright fluorescent glow under a UV light. This not only allows for a quick and accurate diagnosis but also provides a lasting benefit, as the dye can safely remain in the system even after repairs are made, acting as a preventative tool for future leak detection.

KEY FEATURES AND BENEFITS:

• Easy-to-use cartridge system: Simplifies the A/C leak detection process.
• Universal compatibility: Works with R-134a, R-1234yf, and other common refrigerants.
• Lasting presence: Dye remains in the system for future leak detection.
• Time-saving: Eliminates the need to re-inject dye during routine checks.
• Cost-effective maintenance: Supports proactive leak monitoring and system longevity.

SPECIFICATIONS:

• Part Number: TP9875-P6
• Cartridge Size: 0.25 oz (7 ml)
• Refrigerant Compatibility: R-1234yf, R-134a, and other widely used refrigerants
• Injection Method: Designed for use with Tracerline EZ-Ject™ dye injector
• Contents: Six (6) Mini-EZ™ Universal/Ester cartridges

HOW TO USE:

1. Connect the EZ-Ject injector: Attach it to the A/C system’s low-side service port.
2. Insert the cartridge: Unscrew the injector’s piston rod and load one Mini-EZ™ cartridge into the barrel.
3. Reassemble the injector: Thread the piston rod securely back into the barrel.
4. Inject the dye: Depress the piston to release the full contents into the A/C system.
5. Circulate the system: Run the A/C for a few minutes to distribute the dye with refrigerant and oil.
6. Scan for leaks: Use a UV lamp to inspect hoses, fittings, and the compressor for fluorescent glow.

BENEFITS OF USING TRACERLINE 6PCS 0.25OZ MINI-EZ UNIVERSAL/ESTER CARTRIDGE (TP9875-P6):

• Enables fast and accurate A/C leak detection.
• Compatible with multiple refrigerants, reducing inventory needs.
• Dye stays in the system for easier future inspections.
• Helps prevent small leaks from turning into major repairs.
• Supports longer A/C system life and improved efficiency.

FEATURES:

• UV-reactive fluorescent dye for visual leak detection
• Single-dose cartridge format for precise application
• Compatible with R-1234yf and R-134a refrigerants
• Designed for use with the EZ-Ject™ dye injector tool
• Dye remains in the system for ongoing monitoring
