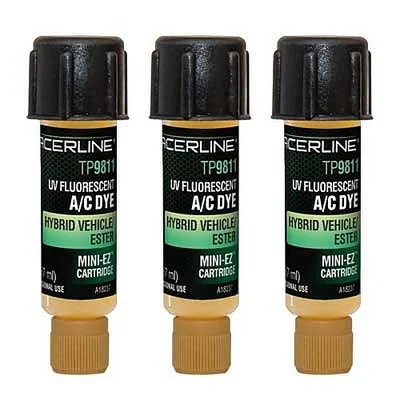

Tracerline 3pcs 0.25oz Mini-EZ Hybrid/Ester Dye Cartridge (TP9811-P3)

Description

The Tracerline 3pcs 0.25oz Mini-EZ Hybrid/Ester Dye Cartridge (TP9811-P3) is a specialized solution for leak detection in modern hybrid and electric vehicle (EV) A/C systems. This product comes as a convenient 3-pack of single-dose, 0.25 oz Mini-EZ cartridges, each containing a unique hybrid/ester dye. This formula is specifically engineered to be compatible with both R-134a and R-1234yf refrigerants, which are standard in these types of vehicles.

KEY FEATURES AND BENEFITS:

• Hybrid/EV System Compatibility: Specifically formulated with a hybrid/ester base, this dye is safe for all components in hybrid and electric vehicle A/C systems, including electrically driven compressors. This protects against potential damage that could be caused by traditional dyes.
• Dual Refrigerant Compatibility: Works effectively with both R-134a and R-1234yf refrigerants, providing a versatile solution for a wide range of hybrid and EV models. You don’t need a separate dye for each refrigerant type.
• High-Dielectric Formula: The dye has high dielectric qualities to prevent electrical conductivity, which is crucial for the safety and integrity of a hybrid system’s electrical components.
• Easy and Mess-Free Application: The Mini-EZ single-dose cartridges are designed for use with a compatible dye injector, allowing for a fast and clean process of adding the dye to the A/C system without spills or contamination.
• Accurate Leak Detection: Under a UV light, the dye glows a vibrant green, making it simple to find and diagnose the exact location of even small leaks. This improves the accuracy of repairs and reduces diagnostic time.
• Economical 3-Pack: Each pack contains three individual cartridges, with each cartridge being a single dose for one vehicle. This provides a cost-effective solution for servicing up to three vehicles from a single purchase.

SPECIFICATIONS:

• Part Number: TP9811-P3
• Product Type: A/C Leak Detection Dye
• Dye Type: Hybrid/Ester
• Dye Volume (per cartridge): 0.25 oz (7 ml)
• Number of Cartridges: 3
• Refrigerant Compatibility: R-134a, R-1234yf
• Dye Color (under UV light): Green
• Shelf Life: Up to 5 years
• Warranty: 2-year limited warranty
• What’s Included: (3) 0.25 oz (7 ml) Mini-EZ single-dose Hybrid/Ester dye cartridges

HOW TO USE:

• Prepare the Injector: Take one of the Mini-EZ dye cartridges from its packaging. Ensure you have a compatible dye injector, such as the Tracerline EZ-Ject, ready for use.
• Load the Cartridge: Screw the dye cartridge onto the injector assembly. Make sure it is securely tightened to prevent leaks during the injection process.
• Connect to the System: Connect the injector to the low-side service port of the vehicle’s A/C system. The system should have at least 50 psi of pressure to assist in injecting the dye.
• Inject the Dye: Follow the instructions for your specific dye injector to inject the dye into the A/C system. This typically involves pushing a plunger or valve to release the dye.
• Run the System: Run the vehicle’s A/C system for a minimum of 5–10 minutes to allow the dye to circulate throughout the refrigerant and oil.
• Inspect for Leaks: Using a UV inspection lamp and UV-enhancing glasses, scan all A/C components, including hoses, fittings, compressors, and evaporators. Any leak will be visible as a glowing green spot.
• Service the Next Vehicle: Disconnect the injector and store it. The remaining two cartridges are sealed and ready for use on the next two vehicles.

BENEFITS OF USING TRACERLINE 3PCS 0.25OZ MINI-EZ HYBRID/ESTER DYE CARTRIDGE (TP9811-P3):

• Enhances diagnostic accuracy by pinpointing the precise location of A/C leaks.
• Reduces technician time spent on troubleshooting and repairs.
• Safeguards delicate electrical and compressor components in hybrid and EV systems.
• Simplifies the leak detection process with its single-dose, pre-measured cartridges.
• Ensures that A/C systems are sealed correctly, preventing future refrigerant loss and costly repairs.
• Provides a clean and controlled method for dye injection, minimizing waste and mess.
• Offers a long shelf life, so you can keep the product on hand for future service needs.

FEATURES:

• High-dielectric formula for safe use in electrically driven compressors.
• Hybrid/Ester dye specifically for hybrid and electric vehicle A/C systems.
• Compatible with both R-134a and R-1234yf refrigerants.
• Each cartridge is a single, pre-measured dose.
• Sold as a pack of three individual cartridges.
• Sealed in moisture-resistant packaging.
• Identifies leaks with a bright green glow under UV light.
• Designed for use with Tracerline Mini-EZ dye injectors.
