Description

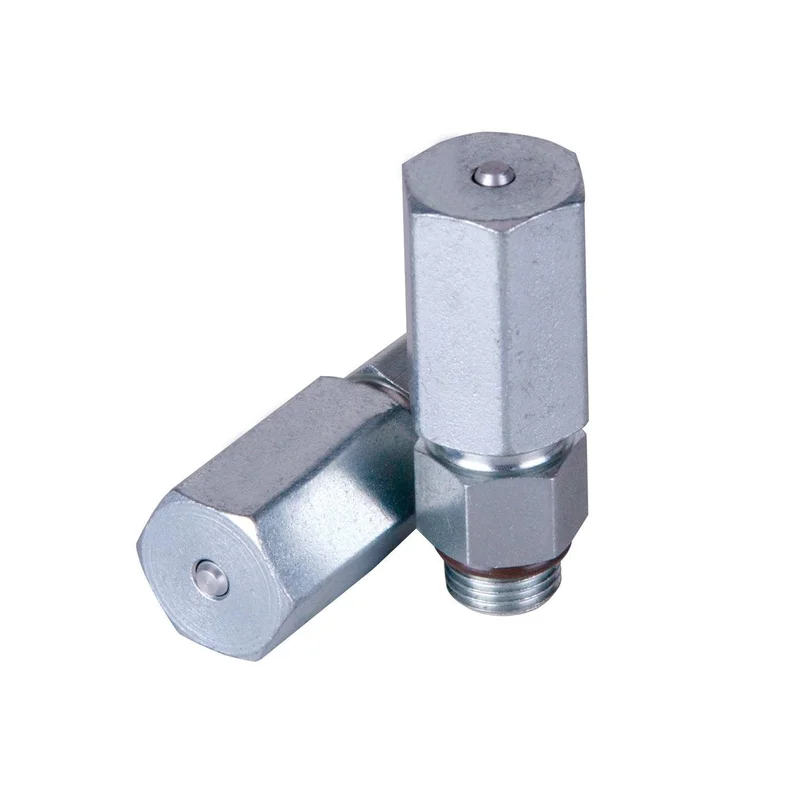

Trabon Performance Indicators are pressure-sensitive devices that pinpoint excessive pressure in Trabon series progressive lubricating systems. These devices, which are installed in the alternate outlet ports of divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant to the atmosphere. All Performance Indicators respond quickly to protect the lube system and locate lube line blockage.
Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).
- High pressure from blockage causes a disc to rupture.
- Lubricant forces an indicator pin to protrude, indicating the blockage.
- High pressure backs up through the system and trips a switch to shut the system off.
- When fault is corrected, disc must be replaced and pin reset.
- Divider Valve Rupture Indicators w/Memory – 3,700 psi (255 bar)
- Lubriquip part number 509-499-100
- Trabon part number 9499-10
UPC Product: 00633955331488 Family Code: FAMCPT Unit of Measure: EA Height: .6 IN |1.524 CM Length: 1.5 IN |3.81 CM Width: .6 IN |1.524 CM Volume: 0 FT3 |0 M3 Chargeable Weight: .12 LBS | .05 KG
Technical Specifications
| Application | In-Plant Machinery, Compressor Equipment |
|---|---|
| Compatible Material | Oil |
| Connection Size (in) | 0.125 |
| Indicator Type | Rupture Indicator |
| Maximum Working Pressure (bar) | 255 |
| Maximum Working Pressure (kPa) | 25500 |
| Maximum Working Pressure (psi) | 3700 |
| Overall Width (mm) | 14.224 |
| Overall Length (cm) | 4 |
| Overall Length (in) | 1.77 |
| Overall Length (mm) | 45 |
| Overall Width (cm) | 1.4224 |
| Overall Width (in) | 0.56 |
| Thread Type | NPTF |
| Type | Relief Indicator |
| Maximum Working Pressure (MPa) | 26 |
| Model | Trabon |
