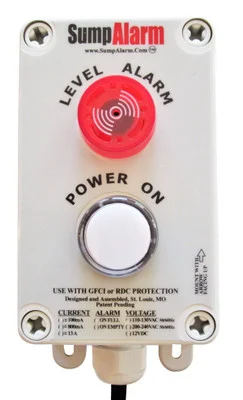

Sump Alarm 120V 20‘ SludgeBoss w/ Power On Light (SA-120V-2L-20SB)

Description

The Sump Alarm 120V 20′ SludgeBoss w/ Power On Light (SA-120V-2L-20SB) is an essential device for monitoring liquid levels in various applications, including sump pumps, water tanks, lift stations, low-density oils, and sewage water systems. This 120V alarm is designed for both indoor and outdoor use, providing reliable visual and audible alerts when liquid levels rise above a critical point, helping to prevent potential overflows and damage.

KEY FEATURES AND BENEFITS:

• Immediate Notification: The loud 90dB horn ensures the alarm is easily heard, while the large 1-inch red LED indicator light offers a clear visual warning, even from a distance. A secondary 1-inch white LED pilot light indicates that the unit has power. When connected to the same circuit as the pump, this power indicator can also visually confirm if the pump is receiving electricity.
• Reliable Float Switch: The included 20-foot Sludge Boss float switch is specifically designed for challenging environments with sewage or significant floating debris. Its self-orienting design eliminates the need for a cable weight, ensuring consistent and reliable level detection.
• Plug-and-Play Operation: The alarm system is designed for simple plug-and-play operation and comes ready to use out of the box.
• Easy Installation: For easy installation, it includes four rear mounting holes, mounting feet, wall anchors, hardware, and wire ties, allowing for flexible mounting options to suit various setups.
• Protection for Your Property: By providing timely alerts, this sump alarm helps protect your property from water damage and potential pump failures.

SPECIFICATIONS:

• Voltage: 120V AC
• Power Cord Length: 6 feet
• Plug Type: 3-prong grounded plug (NEMA 5-15)
• Float Cord Length: 20 feet
• Audible Alarm: 90dB horn
• Visual Alarm: 1-inch red LED indicator light
• Power Indicator: 1-inch white LED pilot light
• Float Switch Type: 20′ Sludge Boss (non-tethered, self-orienting)
• Operating Temperature: -40°F to 140°F
• Mounting: Rear mounting holes, mounting feet
• Environment: Indoor and Outdoor use

HOW TO USE:

1. Secure the Sludge Boss Float: Position the Sludge Boss float switch at the desired high-water alarm level within your sump pit, tank, or other application. Use the provided wire ties to secure the float cable to a discharge pipe or other fixed point, ensuring the float can move freely up and down within its operating range.
2. Mount the Head Unit: Choose a suitable location for the alarm head unit, ensuring it is visible and the audible alarm can be heard. You can use the integrated mounting feet for surface placement or utilize the rear mounting holes with the provided wall anchors and hardware for wall mounting.
3. Plug in the Unit: Connect the 6-foot power cord to a standard 120V grounded electrical outlet. The white LED power indicator should illuminate, confirming the unit is receiving power. If plugged into the same circuit as your pump, observe this light to verify the pump also has power.
4. Test the Alarm: Carefully raise the Sludge Boss float to simulate a high-water level. This should activate the loud 90dB horn and the flashing red LED indicator light. Lower the float to ensure the alarm deactivates.
5. Regular Checks: Periodically inspect the float switch for any obstructions or debris that might hinder its movement. Also, ensure the alarm head unit is clean and the audible and visual indicators are functioning correctly.

BENEFITS OF USING THE SUMP ALARM 120V 20′ SLUDGEBOSS W/ POWER ON LIGHT (SA-120V-2L-20SB):

• Prevents Costly Damage: The combination of a loud audible alarm and a highly visible LED indicator ensures that alerts are noticed promptly, day or night.
• Reliable Operation: The included Sludge Boss float switch offers reliable operation even in challenging environments with sewage or debris, reducing the risk of false alarms or failures due to clogging.
• Power Indicator: The integrated power indicator provides an immediate visual confirmation of the unit’s operational status and can also indicate if the connected pump has power.
• Peace of Mind: By proactively monitoring liquid levels, this alarm offers peace of mind and helps safeguard your property and equipment.

FEATURES:

• Provides immediate audible warning with a loud 90dB directional horn when a high water level is detected.
• Offers a clear visual alert through a large, flashing 1-inch red LED indicator light, visible from a significant distance.
• Includes a dedicated 1-inch white LED pilot light to confirm the unit is powered on.
• Features a specialized 20-foot Sludge Boss float switch designed to operate reliably in water containing sewage or significant floating debris without the need for a cable weight.
• Engineered for simple and quick installation with a plug-and-play design.
• Comes equipped with external feet for surface mounting flexibility.
• Includes a comprehensive set of mounting accessories: wall anchors for the head unit and zip ties for securing the float.
• Suitable for a wide range of applications, including sump pumps, water tanks, and lift stations.
• Designed for use in both indoor and outdoor environments due to its robust construction.
• Offers the possibility of conversion to a low-level alarm configuration if required (though primarily configured for high-level detection).
