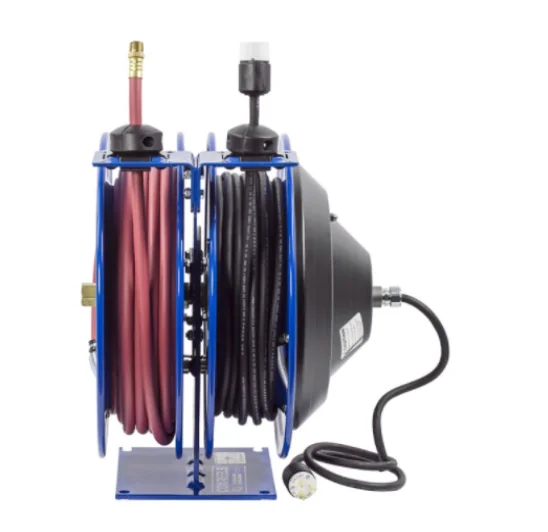

Spring Driven C Series “Combination” Hose Reel : Duplex Industrial Receptacle / 3/8″ / 50 ft / 12 GA / 50 ft

Description

COXREELS® C Series “Combination” spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations.

APPLICATION:

Built for Air Services, Pneumatic Tools, Power Tools, Light Source and General Industrial applications.

SIGNATURE FEATURES:

Professional grade heavy duty steel construction
Rolled edges & ribbed discs provide strength & safety
Leading 2-year manufacturer’s limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

SWIVEL & LEAD CABLE – Machined from solid brass 90˚ full-flow NPT swivel for simple seal maintenance and easy hose installation. External, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance.

CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.

CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.

1/4″ STEEL BASE – Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for air/ electric applications, each reel operates independently.

MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.

OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, sturdy permanently lubricated precision bearings, 5′ lead cable and grounding plug, and single industrial receptacle.
