Description

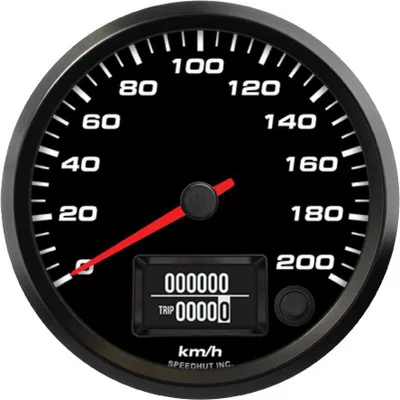

The Speedhut 4″ 200 km/h EV Speedometer Gauge (FAE4-S3-EV) is a specialized instrument designed to provide accurate and reliable speed readings for electric vehicles. Engineered for seamless integration with your EV’s Controller Area Network (CAN-bus) system operating at a 500K baud rate, this gauge receives speed data directly from the vehicle’s electronic control unit (ECU). This eliminates the need for traditional speed sensors, simplifying installation and ensuring precise measurement. With its clear 4-inch display and a range up to 160 mph, this speedometer is an essential tool for monitoring your EV’s performance.
KEY FEATURES AND BENEFITS:
- Accurate Speed Monitoring: Receives precise speed data directly from the EV’s ECU via the CAN-bus, ensuring accurate readings.
- Simplified Installation: Integrates directly into the EV’s CAN-bus system (500K baud rate), eliminating the need for mechanical speed sensors and reducing installation complexity.
- AEM Compatibility: Specifically designed and compatible with AEM Engine Control Units, ensuring optimal performance with these systems.
- Clear and Easy-to-Read Display: The 4-inch gauge provides a clear and easily visible display of your vehicle’s speed up to 160 mph.
- Optional Indicators: Offers the option to connect 12-volt activated turn signal and high beam indicators for added functionality.
- Complete Wiring Solution: Ships with all necessary harnesses, including the EV CAN Jumper Harness, EV CAN Harness, and a 3 ft Power & Lighting Harness.
SPECIFICATIONS:
- Gauge Type: Speedometer
- Signal Type: CAN-Bus (500K baud rate)
- Range: 0 – 160 MPH
- Size: 4 inch
- Mounting Hole Size: 3.93 inches (100mm)
- Units: Standard (Miles per Hour)
- Optional Indicators: Turn Signals (12 Volt Activated), High Beam (12 Volt Activated)
- Included: EV CAN Jumper Harness, EV CAN Harness, 3 ft Power & Lighting Harness
HOW TO USE:
- Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-bus port on your electric vehicle’s ECU.
- Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness to connect the speedometer gauge to the EV CAN Harness.
- Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the gauge’s power and ground connections, as well as to a 12V power source and lighting circuit if desired for illumination.
- Optional Indicator Wiring: If you choose to use the turn signal and high beam indicators, connect the corresponding wires from the Power & Lighting Harness to the 12V activated outputs of your vehicle’s turn signal and high beam circuits.
- Mount the Gauge: Secure the 4-inch speedometer gauge into a 3.93-inch (100mm) diameter opening in your dashboard or instrument panel.
- Verify Functionality: Once all connections are made, power on your electric vehicle and ensure the speedometer is displaying the correct speed readings and that the optional indicators function as expected.
BENEFITS OF USING THE SPEEDHUT 4″ 200 KM/H EV SPEEDOMETER GAUGE (FAE4-S3-EV):
- Ensures highly accurate speed readings through direct CAN-bus integration.
- Reduces installation time and complexity by eliminating physical speed sensors.
- Provides optimal compatibility and performance with AEM ECUs.
- Improves driving safety with a large, easy-to-read speed display.
- Enhances dashboard functionality with optional 12V indicator integrations.
- Includes all necessary harnesses for a streamlined installation process.
FEATURES:
- Directly interfaces with the EV’s CAN-bus (500K baud rate) for speed data.
- Specifically designed for compatibility with AEM Engine Control Units.
- Displays speed up to a maximum of 160 miles per hour.
- Fits into a standard 4-inch (100mm) diameter mounting hole.
- Operates without the need for a physical speed sensor.
- Includes dedicated harnesses for CAN-bus communication and power/lighting.
- Offers optional connections for 12V activated turn signal indicators.
- Provides optional connection for a 12V activated high beam indicator.
- Contributes to a cleaner and more streamlined dashboard setup.
- Ensures precise speed information for optimal EV operation.
