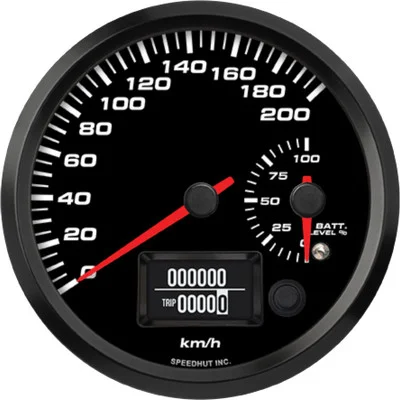

Speedhut 4-1/2″ EV Orion 200km/h Speedom/BatLevel Gauge (FOR45-DS3-EV)

Description

The Speedhut 4-1/2″ EV Orion 200km/h Speedom/BatLevel Gauge (FOR45-DS3-EV) is a comprehensive instrument designed for electric vehicles, providing essential real-time data for a confident driving experience. This dual-function gauge combines a precise speedometer with an accurate battery level/state of charge (SOC) indicator in a single, easy-to-read unit. Integrating seamlessly with your EV’s CAN-Bus system, it delivers reliable speed and battery information directly from the vehicle’s electronics. The added safety of a built-in low battery warning light ensures you stay informed about your power levels.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Displays both vehicle speed (0-200 km/h) and battery level/SOC (0-100%) simultaneously.
• CAN-Bus Integration: Connects directly to the EV’s CAN-Bus (500K baud rate) for precise and real-time data without the need for traditional sensors.
• Low Battery Warning: Features an integrated warning light that activates when the battery level falls below 15%, providing timely alerts.
• Clear and Concise Display: The 4 1/2 inch gauge offers excellent visibility of both speed and battery information.
• Simple Installation: Designed to fit a standard 4.230″ (108mm) mounting hole.
• Optional Indicators: Offers the possibility to connect 12 Volt activated turn signal and high beam indicators for added functionality.
• Worldwide Compatibility: Operates reliably with EV systems utilizing CAN-Bus technology and a 500K baud rate.

SPECIFICATIONS:

• Gauge Type: Dual Speedometer
• Signal Type: CAN-Bus (500K baud rate)
• Speed Range: 0-200 km/h
• Battery Level Range: 0-100%
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Unit of Measurement: Metric (km/h)
• Included:
  • EV CAN Harness
  • EV CAN Jumper Harness
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

• Connect the EV CAN Harness: Plug the provided EV CAN Harness into the designated CAN-Bus port on your electric vehicle’s system.
• Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness to connect the gauge to the EV CAN Harness.
• Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the gauge’s power and lighting connections.
• Mount the Gauge: Insert the gauge into a 4.230″ (108mm) mounting hole and secure it using the integrated mounting mechanism.
• Optional Indicator Wiring: If desired, connect the 12 Volt activated turn signal and high beam indicator wires to the corresponding circuits in your vehicle.
• Power On: Once all connections are secure, power on your electric vehicle. The gauge should now display the current speed and battery level.
• Monitor Readings: Observe the speedometer for your current speed and the battery level indicator to track your remaining charge. The warning light will illuminate if the battery level drops below 15%.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV ORION 200KM/H SPEEDOM/BATLEVEL GAUGE (FOR45-DS3-EV):

• Provides a clear and immediate understanding of your vehicle’s speed and remaining battery charge.
• Offers accurate and reliable data directly from your EV’s system via CAN-Bus.
• Enhances safety with the integrated low battery warning light, alerting you to potential range limitations.
• Simplifies dashboard integration by combining two essential readings into a single gauge.
• Ensures compatibility with a wide range of electric vehicles utilizing standard CAN-Bus communication.
• Offers optional connections for turn signal and high beam indicators, further consolidating vehicle information.

FEATURES:

• Simultaneous display of speed and battery state of charge.
• Direct data acquisition via CAN-Bus (500K baud rate).
• Dedicated visual warning for low battery levels (below 15%).
• Standard 4 1/2 inch gauge size for common mounting applications.
• Metric speed readings (kilometers per hour).
• Included wiring harnesses for straightforward installation.
• Potential for integration with existing 12V indicator signals.
