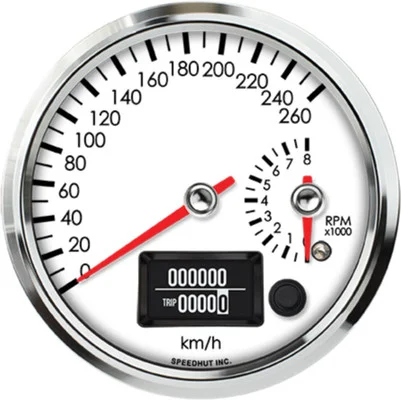

Speedhut 4-1/2″ 260 kmh GPS Speedometer/8K Tachom. Gauge (R45-DS8-LEG)

Description

Experience a new level of driving insight with the Speedhut 4-1/2″ 260 kmh GPS Speedometer/8K Tachom. Gauge (R45-DS8-LEG). This innovative dual gauge seamlessly integrates precise GPS-based speed measurement with accurate engine speed monitoring, providing you with essential real-time data in a clear and easy-to-read format. Designed for straightforward installation and reliable performance, this metric gauge is a valuable addition to any vehicle.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Combines a GPS speedometer with a range of 0-260 km/h and a tachometer with a range of 0-8,000 RPM in a single, compact 4 1/2 inch unit.
• GPS Speed Accuracy: Utilizes GPS technology to deliver highly accurate speed readings in real-time, eliminating the need for mechanical speed sensors and any manual calibration for tire sizes or gear ratios.
• Wide Tachometer Compatibility: The 8,000 RPM tachometer is calibrated to function effectively with any engine that produces a tach signal exceeding one volt, ranging from 1/2 pulse to 6 pulses per revolution.
• Simplified Installation: Requires only a 12V power connection and the included waterproof GPS antenna, which can be conveniently mounted in various locations on your vehicle.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Tachometer
• Speedometer Range: 0 – 260 km/h
• Tachometer Range: 0 – 8,000 RPM
• Size: 4 1/2 inch (diameter)
• Mounting Hole Size: 4.250 inches (108mm)
• Units: Metric (kilometers per hour)
• Included:
• 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
• GPS Antenna with 9.8 ft long cable and male SMA connector
• Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.250″ (108mm) diameter hole in your dashboard or mounting panel. Insert the Speedhut gauge into the hole and secure it using the spin-lock ring from the back of the gauge.
2. Connect Power and Lighting: Connect the 3 ft Power & Lighting Harness to the appropriate power and ground sources in your vehicle’s electrical system (typically 12V). This harness also provides power for the gauge’s backlighting.
3. Install the GPS Antenna: Choose a location for the GPS antenna that has a clear line of sight to the sky. Mount the antenna securely and run the 9.8 ft cable to the back of the gauge, connecting the male SMA connector to the corresponding port.
4. Connect the Tachometer Signal: Connect the 2-Wire Wiring Harness to your engine’s tachometer signal output. Ensure the connection is secure and properly insulated.
5. Start Your Vehicle: Once all connections are made, start your vehicle. The GPS speedometer should acquire a satellite signal and begin displaying your speed. The tachometer should also display the engine’s RPM.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 260 KMH GPS SPEEDOMETER/8K TACHOM. GAUGE (R45-DS8-LEG):

• Unmatched Accuracy: Benefit from precise speed readings derived from GPS technology, eliminating inaccuracies associated with traditional mechanical systems and the need for calibration.
• Effortless Installation: Save time and effort with a straightforward installation process that bypasses the complexities of speed sensors and intricate wiring.
• Universal Compatibility: Monitor engine RPM reliably with a tachometer designed to work with a wide range of engine types and signal outputs.
• Clear and Immediate Data: Get instant, real-time feedback on your speed and engine RPM, enhancing your awareness and control while driving.
• Dependable Performance: Rely on the quality and durability of a gauge made in the USA with a weather-resistant design and a lifetime warranty on electronics.
• Clean and Integrated Look: The dual functionality of this gauge reduces clutter on your dashboard, providing a clean and professional appearance.

FEATURES:

• Precise Readings: An internal microprocessor ensures pinpoint accuracy in both speed and RPM readings, providing you with reliable data.
• Robust Construction: Features a high torque stepper motor for precise pointer movement, a slim gauge case with a user-friendly spin-lock ring for easy mounting, and a solid billet aluminum bezel that adds to the gauge’s durability and visual appeal. The gauge also boasts a weather-resistant design, ensuring performance in various conditions.
• Global Operation: The GPS speedometer operates worldwide without requiring any subscription fees. It is a receive-only system, ensuring your privacy.
• Quality Assurance: Proudly made in America, reflecting high standards of manufacturing and component quality.
• Warranty: Backed by a lifetime warranty on the gauge’s electronic components, providing peace of mind regarding its reliability.
