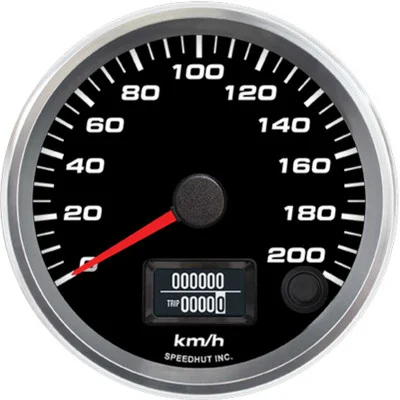

Speedhut 3-3/8″ 200 km/h Metric GPS Speedometer (R3-S2-REV)

Description

The Speedhut 3-3/8″ 200 km/h Metric GPS Speedometer (R3-S2-REV) offers a straightforward and precise way to monitor your vehicle’s speed. Utilizing advanced GPS technology, this gauge provides accurate readings without the complexities of traditional speed sensors. Installation is simple, requiring only a connection to a 12V power source and the placement of the included waterproof GPS antenna. Forget about the need to input tire sizes or gear ratios, as this speedometer automatically calibrates itself. Designed for global operation, it receives free GPS signals, ensuring reliable speed information wherever your travels take you. Its robust construction and clear display make it a valuable tool for any performance-minded individual.

KEY FEATURES AND BENEFITS:

• Provides accurate speed readings: Uses GPS technology, eliminating the need for mechanical or electronic speed sensors.
• Simple installation: Requires only a 12V power connection and the included GPS antenna.
• No calibration necessary: Automatically determines speed via GPS.
• Operates worldwide: Utilizes free GPS signals without any subscription costs.
• Precise speed calculations: Internal microprocessor ensures accuracy and reliability.
• Accurate and smooth pointer movement: Driven by a high-torque stepper motor.
• Easy mounting: Slim case and spin-lock ring fit a 3-3/8″ (84mm) hole.
• Durable construction: Solid billet aluminum bezel adds strength and aesthetic value.
• Weather-resistant design: Ensures performance in various conditions.
• Lifetime Warranty: Offers long-term assurance of product quality.
• Made in the USA: Reflects high manufacturing standards.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Speedometer Signal Type: GPS
• Range: 0-200 km/h
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.3 inches (84mm)
• Standard or Metric: Metric
• Included: 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks), GPS Antenna with 9.8 ft long cable and male SMA connector

HOW TO USE:

1. Mount the Gauge: Locate a suitable 3-3/8″ (84mm) diameter hole in your vehicle’s dashboard or instrument panel. Secure the speedometer in place using the spin-lock ring.
2. Connect Power: Connect the red wire from the included power harness to a 12V positive power source. Connect the black wire to ground. If equipped with LED backlighting, connect the lighting wire to your vehicle’s lighting circuit (refer to wiring guide).
3. Mount the GPS Antenna: Choose a location with a clear view of the sky, such as the roof or dashboard. Clean the surface and secure the antenna.
4. Connect the Antenna: Attach the GPS antenna cable to the back of the speedometer (male SMA connector).
5. Power On: Turn on the vehicle’s ignition to power the speedometer. The pointer will move as it begins acquiring a GPS signal.
6. Wait for GPS Signal: Wait a short period for signal acquisition. Once connected, the speedometer will display accurate speed readings.
7. Operation: The gauge will continuously show your vehicle’s speed using GPS data while driving.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ 200 KM/H METRIC GPS SPEEDOMETER (R3-S2-REV):

• Precise Speed Indication: Delivers reliable and accurate speed readings for safe driving.
• Simplified Installation: No need to wire into complex vehicle systems.
• Universal Compatibility: Works with various vehicle types without additional interfaces.
• Automatic Calibration: Removes the need for manual configuration.
• Global Functionality: Operates worldwide using GPS signal reception.
• Long-Lasting Reliability: Built to endure, supported by a Lifetime Warranty.
• Enhanced Aesthetics: Machined aluminum bezel adds a stylish touch to interiors.

FEATURES:

• Integrated circuitry for highly accurate speed calculations derived from GPS data.
• Responsive pointer movement powered by a high-torque stepper motor for clear and immediate speed indication.
• Compact gauge housing with a spin-lock mechanism for secure and straightforward mounting.
• Machined aluminum bezel providing both structural integrity and visual appeal.
• Engineered to withstand various environmental elements, ensuring consistent performance.
• Backed by a comprehensive lifetime guarantee on the electronics.
• Manufactured in the USA, adhering to stringent quality control standards.
