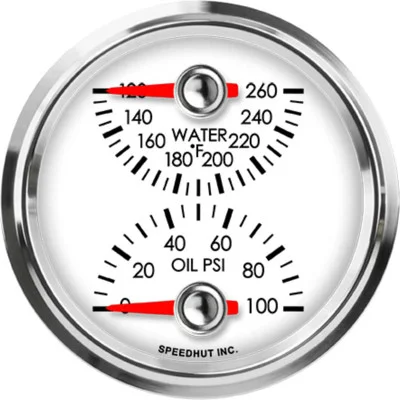

Speedhut 2-5/8″ Water Temp / Oil Pressure (top/bot) (L25-DG1-LEG)

Description

The Speedhut 2-5/8″ Water Temp / Oil Pressure (top/bot) (L25-DG1-LEG) is a compact dual gauge that allows users to monitor both water temperature and oil pressure in real time from a single unit. With its space-saving 2-5/8 inch design, it fits seamlessly into your dashboard while offering vital information to help maintain your engine’s performance and longevity. This gauge offers both practicality and style, delivering essential engine data with precision and clarity.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Consolidates water temperature and oil pressure readings in one unit.
• Real-Time Monitoring: Enables immediate tracking of critical engine parameters.
• Dashboard Efficiency: Saves space and reduces clutter by integrating two gauges in one.
• Visual Appeal: Enhances dashboard aesthetics while providing functional benefits.
• Complete Setup: Includes all necessary sensors and wiring harnesses for straightforward installation.

SPECIFICATIONS:

• Gauge Type: Dual Gauge (Water Temperature and Oil Pressure)
• Combo Options: Water Temp and Oil Pressure
• Water Temperature Range: 120-260 °F
• Oil Pressure Range: 0-100 psi
• Units: Standard
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Sensor – 100 psi
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Secure the 2 5/8 inch dual gauge into a 2.67-inch (68mm) diameter opening in your dashboard using the included mounting ring.
2. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to an appropriate power source and lighting circuit for LED functionality.
3. Install the Temperature Sensor: Mount the Speedhut Temperature Sensor on your engine in a location suitable for accurate water temperature reading, then connect it with the 2-Wire Cable.
4. Install the Pressure Sensor: Fit the 100 psi Pressure Sensor to an engine port suitable for oil pressure monitoring and connect it with the 3-Wire Cable.
5. Verify Connections: Confirm that all wiring connections are secure and correspond with the gauge’s wiring diagram.
6. Power On: Start your vehicle to activate the gauge and begin monitoring.
7. Monitor Readings: Observe water temperature and oil pressure readings to ensure proper functionality and safe engine operation.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ WATER TEMP / OIL PRESSURE (TOP/BOT) (L25-DG1-LEG):

• Combines vital engine metrics in one device, reducing dashboard clutter.
• Facilitates early detection of engine issues with continuous real-time data.
• Improves overall engine diagnostics and maintenance efficiency.
• Supports engine longevity by enabling preventative care through accurate monitoring.
• Delivers essential performance data in standard units (°F and psi) for easy interpretation.

FEATURES:

• Integrated Design: Combines water temperature and oil pressure readings in a single, compact 2 5/8 inch housing.
• Space Optimization: Maximizes dashboard area by providing two essential functions in one gauge.
• Direct Readings: Offers immediate and continuous display of critical engine data.
• Complete Wiring Included: Comes with dedicated harnesses for power/lighting, temperature sensor, and pressure sensor for ease of installation.
• Included Sensors: Ships with a 100 psi pressure sensor and a Speedhut temperature sensor, ensuring compatibility.
• Standard Measurement: Displays readings in Fahrenheit (°F) for temperature and pounds per square inch (psi) for pressure.
• Straightforward Mounting: Includes a mounting ring for a secure and clean installation in a standard 2.67-inch opening.
