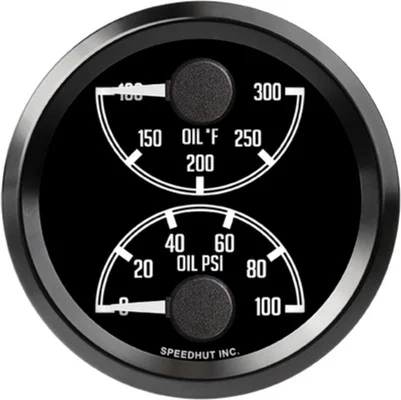

Speedhut 2-5/8″ JDM Z Oil Temp / Oil Pressure (top/bot) (L25-DG6-DATZ)

Description

The Speedhut 2-5/8″ JDM Z Oil Temp / Oil Pressure (top/bot) (L25-DG6-DATZ) offers a space-saving solution for monitoring two critical aspects of your engine’s performance. This single 2 5/8-inch gauge provides real-time readings for both oil temperature and oil pressure, allowing you to stay informed about your engine’s health. Designed with a style that complements Datsun and other JDM vehicles, this gauge is a practical and visually appealing addition to your dashboard. It simplifies the process of keeping track of vital engine metrics, providing essential information for efficient assessment and optimization.

KEY FEATURES AND BENEFITS:

• Dual Gauge Functionality: Combines oil temperature and oil pressure readings into a single 2 5/8-inch unit.
• Real-Time Monitoring: Displays simultaneous, real-time data on two critical engine parameters.
• User-Friendly Installation: Includes sensors and wiring harnesses to simplify setup.
• Stylish Design: Aesthetic complements Datsun and JDM vehicle interiors.
• Preventative Maintenance Tool: Helps identify issues early to avoid significant engine damage.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Oil Temperature (Top) and Oil Pressure (Bottom)
• Oil Temperature Range: 100-300 °F
• Oil Pressure Range: 0-100 psi
• Size: 2 5/8 inches
• Mounting Hole Size: 2.67 inches (68mm)
• Warning Light: No
• Gauge Mounting Ring: Included
• Included:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Temperature Gauge Wiring Harness (2-Wire Cable)
• Pressure Sensor – 100 psi
• Speedhut Temperature Sensor
• 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter hole on your dashboard. Insert the gauge into the hole and secure it using the included mounting ring from the back.
2. Connect the Pressure Sensor: Install the provided 100 psi pressure sensor at the appropriate location on your engine where oil pressure can be measured. Connect the 3-wire pressure gauge wiring harness to the sensor and then to the back of the gauge.
3. Connect the Temperature Sensor: Install the provided Speedhut temperature sensor at the designated point on your engine for measuring oil temperature. Connect the 2-wire temperature gauge wiring harness to the sensor and then to the back of the gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to a suitable 12V power source in your vehicle. Ensure proper grounding. The harness will also provide power for the gauge’s operation and LED backlighting.
5. Verify Readings: Once all connections are secure, start your vehicle and check that the gauge is receiving power and displaying accurate readings for both oil temperature and oil pressure.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ JDM Z OIL TEMP / OIL PRESSURE (TOP/BOT) (L25-DG6-DATZ):

• Efficient Monitoring: Combines essential engine metrics into one compact unit for quicker analysis.
• Early Detection: Alerts users to abnormal conditions before they cause damage.
• Enhanced Dashboard Aesthetics: JDM-style design integrates seamlessly with Datsun and similar interiors.
• DIY-Friendly: Complete with sensors and harnesses for straightforward installation.
• Peace of Mind: Provides constant feedback on engine health, reducing the risk of unexpected failures.

FEATURES:

• Integrated Dual Display: Shows both oil temperature and oil pressure simultaneously in a single 2-5/8″ housing.
• Specific Measurement Ranges: Calibrated to accurately display oil temperature from 100 to 300 degrees Fahrenheit and oil pressure from 0 to 100 psi.
• Direct Sensor Connectivity: Includes dedicated pressure and temperature sensors designed for accurate readings.
• Complete Wiring Solutions: Comes with separate wiring harnesses for both the pressure and temperature sensors, as well as a power and lighting harness.
• Secure Mounting System: Includes a gauge mounting ring to ensure a stable and finished installation on your dashboard.
• Designed for Compatibility: Styled to aesthetically match the interiors of Datsun and other vehicles with a Japanese Domestic Market influence.
