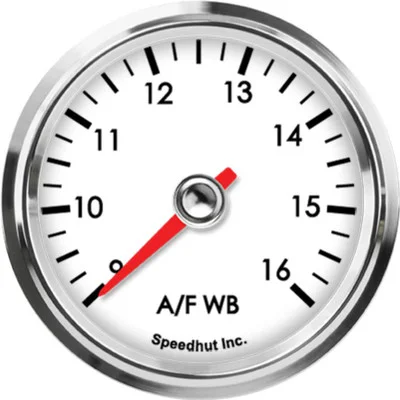

Speedhut 2-5/8″ Ballenger 9-16 Air/Fuel Wide Band Gauge (L25-WB7-LEG)

Description

The Speedhut 2-5/8″ Ballenger 9-16 Air/Fuel Wide Band Gauge (L25-WB7-LEG) offers precise monitoring of your engine’s air-to-fuel ratio. Designed for compatibility with Ballenger AFR500 and NGK AFX wideband controllers, this gauge provides accurate readings within the 9 to 16 AFR range, crucial for optimizing engine performance and efficiency. Its clear display allows for easy monitoring, ensuring you have the vital information needed to make informed adjustments to your engine tuning.

KEY FEATURES AND BENEFITS:

• Accurate AFR Readings: Provides accurate air/fuel ratio readings between 9 and 16 AFR.
• Wideband Compatibility: Specifically engineered for seamless integration with Ballenger AFR500 and NGK AFX wideband controllers.
• Compact Display Size: The 2-5/8 inch (66.675 mm) size offers a balance of visibility and easy installation in most gauge pods.
• Secure Mounting Design: Slim case design with a spin-lock ring ensures a secure and straightforward mounting process, requiring a 2.67 inch (68 mm) diameter hole.
• Included Wiring Harnesses: Includes essential wiring harnesses for power, lighting, and tachometer signals, simplifying the installation process.

SPECIFICATIONS:

• Gauge Type: Air/Fuel Wideband Gauge
• Reading Range: 9 – 16 AFR
• Size: 2 5/8 inch (66.675 mm)
• Mounting Hole Size: 2.67 inches (68 mm)
• Input Voltage: 0 volts to 5 volts (from compatible controller)
• Included:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

1. Connect Power: Connect the gauge’s power and lighting harness to a suitable power source and lighting circuit in your vehicle.
2. Attach Signal Wire: Connect the signal output from your Ballenger AFR500 or NGK AFX wideband controller to the appropriate input wire on the gauge. Ensure the 0-5 volt signal wire from the controller is correctly connected.
3. Optional Tachometer Connection: If desired, connect the tachometer harness according to your vehicle’s tachometer signal output.
4. Mount the Gauge: Mount the gauge in a 2.67 inch (68 mm) diameter hole using the spin-lock ring for secure placement.
5. Power On and Monitor: Once all connections are secure and the vehicle is running, the gauge will display the real-time air/fuel ratio as reported by the connected wideband controller.
6. Analyze Readings: Monitor the displayed AFR values to ensure your engine is running within the optimal range for your specific application.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ BALLENGER 9-16 AIR/FUEL WIDE BAND GAUGE (L25-WB7-LEG):

• Precise Monitoring: Provides accurate and immediate feedback on your engine’s air/fuel ratio, crucial for performance tuning and diagnostics.
• Controller Compatibility: Specifically designed to work seamlessly with popular Ballenger AFR500 and NGK AFX wideband controllers, ensuring reliable data transfer.
• Easy Installation: The included wiring harnesses and straightforward mounting system simplify the setup process.
• Clear Visuals: The 2-5/8″ display offers good visibility of the AFR readings, allowing for quick and easy monitoring while driving.
• Essential Data: Provides vital information needed to optimize fuel delivery, potentially improving fuel efficiency and preventing engine damage from running too lean or too rich.

FEATURES:

• AFR Display Range: Displays air/fuel ratio within the 9 to 16 range.
• Direct Controller Integration: Engineered for direct communication with Ballenger AFR500 and NGK AFX controllers.
• Spin-Lock Mounting: Utilizes a slim case with a spin-lock mechanism for secure mounting.
• Electrical Connection Harnesses: Comes with a dedicated power and lighting wiring setup.
• Tachometer Signal Option: Includes a separate harness for optional tachometer signal connection.
• Straightforward Setup: Designed for a straightforward electrical connection to compatible wideband controllers.
