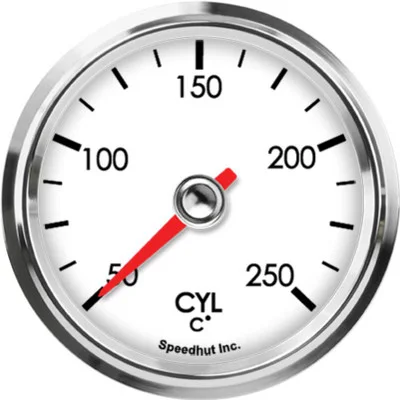

Speedhut 2-5/8″ 50-250C Cylinder Head Temp Gauge (L25-CT2-LEG)

Description

The Speedhut 2-5/8″ 50-250C Cylinder Head Temp Gauge (L25-CT2-LEG) is designed to provide precise and reliable monitoring of your engine’s cylinder head temperature. This metric gauge displays readings from 50 to 250 degrees Celsius, allowing you to keep a close eye on critical engine operating conditions. Its 2 5/8 inch size ensures clear visibility, while the included components facilitate a straightforward installation process.

KEY FEATURES AND BENEFITS:

• Accurate temperature range: Measures cylinder head temperature from 50 to 250°C.
• K-type thermocouple probe: Ensures precise temperature sensing directly from the engine head.
• Display size: 2 5/8 inch for optimal visibility and panel integration.
• Easy installation: Includes mounting ring for secure placement.
• Power and lighting harness: Facilitates connection to power and LED illumination circuits.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Cylinder Head Temperature Gauge
• Range: 50-250 °C
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Metric
• Warning Light: No
• Gauge Mounting Ring: Included
• Ships With:
• Cylinder Head (14mm) Type K Probe: 9 feet long with braided steel line
• 3 ft Power & Lighting Harness: For LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Choose a location and drill a 2.67-inch (68mm) hole. Insert the gauge and secure it using the provided mounting ring.
2. Install the Temperature Probe: Locate a 14mm threaded port on your engine’s cylinder head and screw in the thermocouple probe securely.
3. Connect the Wiring Harness: Follow the instructions to connect power, ground, and lighting circuits to the gauge.
4. Connect the Probe Wire: Route the wire to the back of the gauge and connect it to the corresponding terminals, ensuring correct polarity if required.
5. Test the Gauge: Start the engine and verify that the gauge displays the correct temperature reading.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 50-250C CYLINDER HEAD TEMP GAUGE (L25-CT2-LEG):

• Prevents engine damage: Allows early detection of overheating or abnormal engine conditions.
• Enhances engine management: Enables informed decisions about engine operation.
• Metric display: Celsius readings are ideal for international users and metric systems.
• User-friendly installation: Comes with all necessary components for a hassle-free setup.
• Built for durability: Rugged probe construction ensures reliable, long-term performance.

FEATURES:

• Displays temperatures from 50°C to 250°C in real time.
• Uses a dependable K-type thermocouple probe with a 14mm threaded fitting.
• Features a large, easy-to-read 2 5/8 inch display.
• Installs in a standard 2.67-inch (68mm) panel cutout.
• Temperature readings shown in Celsius (°C).
• Includes a durable 9-foot braided steel temperature probe.
• Comes with a 3-foot power and lighting harness for easy wiring.
• Equipped with a spin-lock mounting ring for quick and secure installation.
