Speedhut 2-5/8″ 100-300F Trans Temp Gauge – 90° Sweep (L25-TT2-LEG)

Description

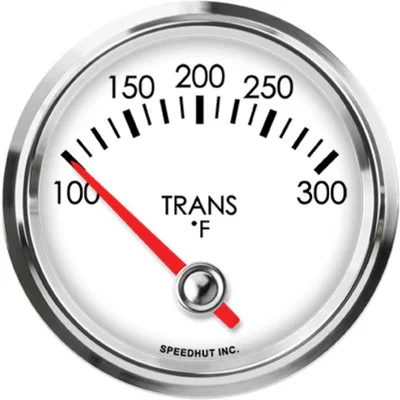

The Speedhut 2-5/8″ 100-300F Trans Temp Gauge – 90° Sweep (L25-TT2-LEG) is designed to provide accurate and reliable monitoring of your vehicle’s transmission fluid temperature. This analog gauge, featuring a classic aesthetic with a white face, black numbers, and an orange pointer, displays temperatures ranging from 100 to 300 degrees Fahrenheit across a clear 90-degree sweep. It’s an essential tool for any vehicle owner looking to maintain optimal transmission health and prevent potential damage caused by overheating. The gauge comes complete with a high-performance 2-wire temperature sender and all the necessary wiring for a straightforward installation.

KEY FEATURES AND BENEFITS:

• Provides precise readings: Transmission fluid temperature between 100°F and 300°F, allowing you to monitor critical operating conditions.
• Analog display with 90-degree sweep: Offers easy and quick visual interpretation of temperature changes.
• High-quality 2-wire sender: Ensures accurate and dependable temperature readings.
• 3 ft power and lighting harness: Enables clear visibility with LED illumination during day and night driving.
• Dedicated temperature gauge wiring harness: 2-wire cable for seamless connection between the sender and the gauge.
• Standard 2-5/8 inch (67mm) gauge size: Versatile dimension suitable for various installations.
• Classic design: Complements a wide range of vehicle interiors.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Transmission Temperature Gauge
• Range: 100-300 F
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Standard
• Warning Light: No
• Included: 3 ft Power & Lighting Harness, Speedhut Temperature Sensor, Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Choose a suitable location on your dashboard or in a gauge pod and create a 2.67″ (68mm) diameter hole. Secure the gauge in place using its mounting hardware.
2. Install the Temperature Sensor: Locate an appropriate port on your vehicle’s transmission pan or fluid line. Install the included Speedhut temperature sensor into this port.
3. Connect the Sensor Wiring: Run the provided 2-wire temperature gauge wiring harness from the installed temperature sensor to the back of the gauge. Connect the wires to the corresponding terminals on the gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to a suitable 12V power source in your vehicle. Ensure proper grounding. Connect the other end of the harness to the designated terminals on the back of the gauge to power the gauge and its LED illumination.
5. Verify Functionality: Once all connections are secure, start your vehicle and allow it to reach operating temperature. Observe the gauge to ensure it is displaying accurate transmission temperature readings.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 100-300F TRANS TEMP GAUGE – 90° SWEEP (L25-TT2-LEG):

• Early Overheat Detection: Prevents costly repairs by alerting you to abnormal transmission temperatures.
• Prolongs Transmission Life: Helps maintain optimal performance by avoiding overheating-related wear.
• Ideal for Heavy-Duty Conditions: Especially useful when towing, driving on steep grades, or operating under stress.
• Enhances Performance Awareness: Gives real-time feedback on transmission health for smoother operation.

FEATURES:

• Clear Analog Display: Easy-to-read face with bold numerals and pointer for quick reference.
• Temperature Range Sweep: 90-degree range for visible temperature changes.
• Accurate Sensing Unit: 2-wire sender for reliable performance.
• LED Backlighting: Illuminates gauge for visibility in all lighting conditions.
• Simple Installation: Standard size and included components make setup fast and easy.
• Complete Kit: All wiring and sensor components included for convenience.
