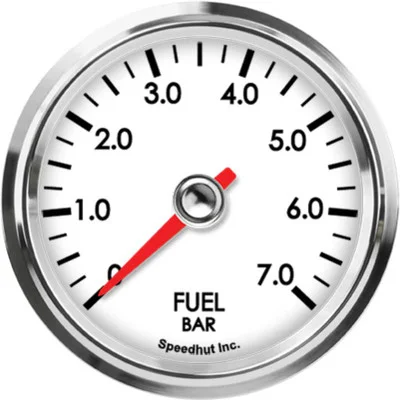

Speedhut 2-5/8″ 0-7.0 Bar Fuel Pressure Gauge (L25-FP7-LEG)

Description

Speedhut 2-5/8″ 0-7.0 Bar Fuel Pressure Gauge (L25-FP7-LEG) from the Legacy series offers precise and reliable monitoring of your vehicle’s fuel system. Designed with a classic aesthetic, this metric gauge seamlessly blends a timeless look with modern, high-performance technology. It provides accurate readings ranging from 0 to 7.0 bar, crucial for ensuring optimal engine performance and identifying potential fuel delivery issues. Built with quality components and backed by a strong warranty, this gauge is a valuable addition to any vehicle where accurate fuel pressure monitoring is essential.

KEY FEATURES AND BENEFITS:

• Accurate Measurement: Provides precise fuel pressure readings from 0 to 7.0 bar, allowing for careful monitoring of the fuel system.
• Reliable Sensor: Utilizes a 3-Wire Military Grade Transducer (Performance) for consistent and accurate pressure readings.
• Metric Units: Displays pressure in bar (0-7.0 bar), catering to users who prefer or require metric measurements.
• Clear Display: Features a 2 5/8 inch analog display with a white face, black numbers, and an orange pointer for easy readability.
• Illuminated for Night Use: Equipped with LED lighting for both the pointer and dial, ensuring excellent visibility during nighttime driving.
• Complete Wiring Included: Ships with a pressure gauge wiring harness (3-wire cable) and a 3 ft power & lighting harness, simplifying the installation process for LED illumination.

SPECIFICATIONS:

• Standard or Metric: Metric
• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-7.0 bar
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Ships With:
  • Pressure Sensor – 100 psi (with 1/8″ NPT thread)
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Choose a suitable location on your dashboard or instrument panel and create a 2.67″ (68mm) diameter hole. Secure the gauge in the opening.
2. Install the Pressure Sensor: Locate an appropriate port on your vehicle’s fuel system. Install the included 100 PSI pressure sensor (using the 1/8″ NPT thread) at this location. Ensure a proper seal to prevent leaks.
3. Connect the Sensor Wiring: Connect the 3-wire cable from the pressure gauge to the corresponding terminals on the pressure sensor. Refer to the wiring diagram provided with the gauge or on Speedhut’s website for correct connections.
4. Connect Power and Lighting: Connect the 3 ft power & lighting harness. Typically, one wire will connect to a 12V power source (ignition switched is recommended), and another wire will connect to a ground. The remaining wire(s) are for the LED illumination and should be connected to a 12V lighting circuit (e.g., your vehicle’s headlight or parking light circuit) to illuminate the gauge when the lights are on.
5. Ground the Gauge: Ensure the gauge housing has a proper ground connection to the vehicle’s chassis for accurate readings and proper operation of the electronics.
6. Verify Operation: Once all connections are made, start your vehicle and check the fuel pressure reading on the gauge. Turn on your vehicle’s lights to ensure the gauge illumination is working correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-7.0 BAR FUEL PRESSURE GAUGE (L25-FP7-LEG):

• Monitor Fuel System Health: Detect potential issues such as a failing fuel pump, clogged fuel filter, or faulty fuel pressure regulator before they lead to significant performance problems or engine damage.
• Maintain Optimal Engine Efficiency: Ensure the correct fuel pressure is maintained for smooth engine operation, better throttle response, and potentially improved fuel economy.
• Enhance Performance Tuning: When modifying your engine for more performance, the gauge helps ensure the fuel system delivers the necessary fuel volume and pressure under various load conditions.
• Improve Vehicle Reliability: Monitoring your fuel system helps identify minor issues before they escalate, contributing to your vehicle’s overall reliability and longevity.
• Peace of Mind: Proactive monitoring of the fuel system ensures you can address problems early, giving you confidence that your vehicle’s engine is running optimally.

FEATURES:

• Included Sensor: Comes with a 100 PSI pressure sensor with a 1/8″ NPT thread, ready for installation into your fuel system.
• Durable Construction: Built to withstand automotive environments, offering long-lasting performance.
• Warranty: Backed by Speedhut’s Lifetime Warranty on gauge electronics and a 5-year warranty on hardware (for purchases after January 1, 2006), providing peace of mind.
• Made in America: Ensures high-quality manufacturing and supports domestic production.
