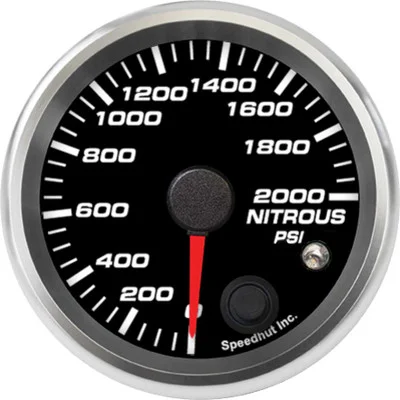

Speedhut 2-5/8″ 0-2000 PSI Nitrous Pressure Gauge w/Warn (R25-NP1-REV)

Description

The Speedhut 2-5/8″ 0-2000 PSI Nitrous Pressure Gauge w/Warn (R25-NP1-REV) is a precise instrument designed for monitoring the pressure within your vehicle’s nitrous oxide system. This gauge provides accurate readings in both standard (PSI) and metric units, ensuring you have the information needed to maintain optimal system performance and safety. Equipped with a high-quality 3-wire military-grade transducer, this gauge delivers reliable pressure measurements. The integrated warning light provides an immediate visual alert if the pressure falls outside of a safe operating range, helping to prevent potential issues. Its 2-5/8 inch size makes it a suitable fit for many aftermarket gauge pods and mounting solutions.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Provides precise readings of nitrous pressure from 0 to 2000 PSI, crucial for optimizing system performance.
• Dual Unit Display: Displays pressure in both standard (PSI) and metric units, offering versatility for user preference.
• Performance-Oriented Sensor: Utilizes a 3-wire military-grade transducer, ensuring high accuracy and reliability of pressure readings.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Nitrous Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-2000 psi
• Size: 2 5/8 inch
• Hole Size: 2.68″ (68mm)
• Warning Light: Yes
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • High Pressure Sensor – 5000psi
  • Adapter, 1/8 inch NPT Male to 3/8-24 ORB Female

HOW TO USE:

• Mount the Gauge: Securely install the 2-5/8 inch gauge in your desired location using a compatible gauge pod or mounting solution, ensuring the 2.68″ (68mm) hole size is appropriate.
• Install the Pressure Sensor: Mount the included high-pressure sensor (5000psi) into the nitrous system’s plumbing using the provided adapter (1/8 inch NPT Male to 3/8-24 ORB Female). Ensure a tight and leak-free connection.
• Connect the Wiring Harness: Attach the 3-wire pressure gauge wiring harness to the terminals on the pressure sensor.
• Connect Power and Lighting: Use the 3 ft power & lighting harness to connect the gauge to a suitable power source in your vehicle. This harness also powers the LED illumination of the gauge.
• Connect Sensor Signal: Connect the other end of the pressure gauge wiring harness to the corresponding terminals on the back of the Speedhut gauge.
• Test the System: Once all connections are made, carefully start your vehicle and activate the nitrous system. Observe the gauge to ensure it is providing accurate pressure readings. Verify that the warning light functions as expected when pressure deviates significantly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-2000 PSI NITROUS PRESSURE GAUGE W/WARN (R25-NP1-REV):

• Allows for precise and real-time monitoring of your nitrous system’s pressure to maintain optimal performance.
• Helps prevent potential damage from over-pressurization or insufficient pressure.
• Integrated warning light offers immediate alerts for pressure fluctuations.
• Dual unit display (PSI and metric) accommodates user preference.
• High-quality components and included hardware make for a simplified installation process.
• Provides data necessary for informed system adjustments and consistent nitrous delivery.

FEATURES:

• Integrated Warning Light: Features a built-in warning light that activates when pressure deviates from a safe level, enhancing system safety.
• Easy Installation: Comes with the necessary wiring harnesses, a high-pressure sensor, and an adapter for straightforward installation.
• Standard Size: The 2-5/8 inch diameter fits common gauge mounting solutions.
