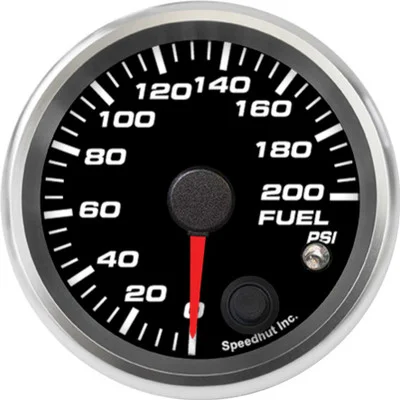

Speedhut 2-5/8″ 0-200 PSI Fuel Pressure Gauge w/ Warning (R25-FP5-REV)

Description

The Speedhut 2-5/8″ 0-200 PSI Fuel Pressure Gauge w/ Warning (R25-FP5-REV) is a vital instrument for monitoring your vehicle’s fuel system pressure. This gauge provides accurate readings, allowing you to ensure optimal engine performance and prevent potential damage caused by inadequate or excessive fuel pressure. Featuring a built-in warning light, this gauge offers an immediate visual alert if pressure levels deviate from a safe range. The inclusion of a high-quality, 3-wire military-grade pressure transducer ensures reliable and precise measurements. This gauge is designed for a 2 5/8 inch mounting hole and comes complete with the necessary wiring and a robust pressure sensor.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of fuel pressure within a 0-200 PSI range, crucial for maintaining engine efficiency.
• Early Warning System: Integrated warning light alerts the driver to critical fuel pressure drops or spikes, allowing for timely intervention and preventing potential engine damage.
• High-Performance Sensor: Utilizes a 3-wire military-grade pressure transducer, known for its accuracy and reliability in demanding automotive environments.
• Complete Installation Kit: Ships with all essential wiring harnesses, including a dedicated harness for the gauge and another for power and lighting, simplifying the installation process.
• Robust Pressure Measurement: Includes a 300 PSI pressure sensor, offering a safety margin and ensuring accurate readings within the gauge’s operational range.
• Standard Size: The 2 5/8 inch gauge size fits common aftermarket gauge pods and mounting solutions.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-200 psi
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Ships With:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness
  • Pressure Sensor – 300psi

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter hole in your desired mounting location (e.g., gauge pod, dashboard panel). Secure the Speedhut fuel pressure gauge in this opening.
2. Install the Pressure Sensor: Identify a suitable point in your vehicle’s fuel system to install the included 300 PSI pressure sensor. This typically involves a test port or requiring the installation of a T-fitting (not included). Ensure proper sealing to prevent fuel leaks.
3. Connect the Sensor Wiring: Using the provided Pressure Gauge Wiring Harness (3-Wire Cable), connect the three wires from the sensor to the corresponding terminals on the back of the gauge. Refer to the Speedhut wiring diagram for correct connections.
4. Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a suitable 12V power source, ground, and your vehicle’s lighting circuit (if you desire the gauge to illuminate with your other instruments).
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct before applying power.
6. Start the Vehicle: Once all connections are verified, start your vehicle and observe the fuel pressure reading on the gauge.
7. Set the Warning Threshold (if applicable): Some Speedhut gauges allow you to set a specific pressure threshold for the warning light. Consult the gauge’s instructions on how to configure this setting if available.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-200 PSI FUEL PRESSURE GAUGE W/ WARNING (R25-FP5-REV):

• Provides critical insight into your vehicle’s fuel system health by accurately monitoring fuel pressure.
• Helps identify issues such as a failing fuel pump, clogged fuel filter, or faulty pressure regulator before major engine damage occurs.
• The integrated warning light enhances safety by delivering immediate alerts during dangerous pressure fluctuations.
• High-quality components, including the military-grade transducer, ensure consistent and dependable readings.
• Simplifies installation with the inclusion of wiring and a 300 PSI pressure sensor, making it suitable for both professional and DIY setups.

FEATURES:

• Provides real-time fuel pressure readings from 0 to 200 PSI.
• Equipped with a bright, noticeable warning light for immediate alerts.
• Utilizes a robust 3-wire military-grade transducer for precise measurements.
• Designed with a standard 2 5/8 inch diameter for versatile mounting options.
• Includes a dedicated 3-wire cable for connecting the pressure sensor.
• Comes with a separate 3 ft harness for powering the gauge and its illumination.
• The included 300 PSI pressure sensor offers extended measurement capability.
