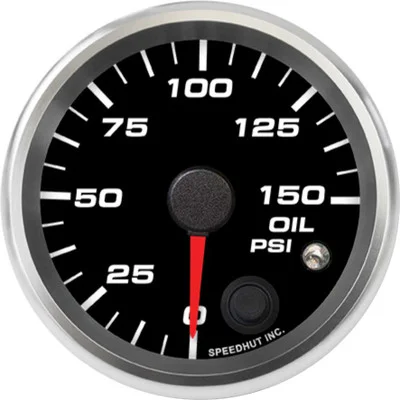

Speedhut 2-5/8″ 0-150 PSI Oil Pressure Gauge w/ Warning (R25-OP7-REV)

Description

The Speedhut 2-5/8″ 0-150 PSI Oil Pressure Gauge w/ Warning (R25-OP7-REV) is a crucial instrument for any vehicle owner or enthusiast who demands accurate and reliable monitoring of their engine’s oil pressure. This gauge provides real-time feedback on a vital engine parameter, allowing you to identify potential issues before they lead to costly damage. Designed with precision and user-friendliness in mind, it integrates advanced technology with a clear and easy-to-read display. The inclusion of a settable warning light adds an extra layer of security, alerting you to out-of-range pressure conditions so you can take immediate action.

KEY FEATURES AND BENEFITS:

• Pressure Range: Measures oil pressure from 0 to 150 PSI, covering most automotive needs.
• High-Performance Transducer: Equipped with a 3-wire military-grade pressure transducer for reliable readings.
• Programmable Warning Light: Allows user-defined thresholds for high and low pressure warnings.
• Easy Installation: Includes wiring harnesses to simplify setup and ensure accurate connections.
• Clear Display: Designed for quick and easy readability while driving.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-150 psi
• Size: 2 5/8 inch
• Hole Size: 2.68″ (68mm)
• Warning Light: Yes
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Pressure Sensor – 300psi

HOW TO USE:

1. Mount the Gauge: Install the 2-5/8″ gauge into a 2.68″ (68mm) opening using appropriate mounting hardware.
2. Install the Pressure Sensor: Find a port on the engine’s oil system and install the included 300psi sensor securely to prevent leaks.
3. Connect the Wiring Harnesses:
   • Attach the pressure sensor’s 3-wire cable to the gauge using the included harness.
   • Connect the 3 ft Power & Lighting Harness to the power and ground, and optionally to the lighting circuit.
4. Set the Warning Light (Initial Setup): Hold the rear button while powering on the gauge. Release once the light turns on, then press the button at desired low and high warning points to set thresholds.
5. Monitor Oil Pressure: Start the engine and observe the gauge for real-time oil pressure readings. The warning light will activate if the pressure falls outside your set parameters.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-150 PSI OIL PRESSURE GAUGE W/ WARNING (R25-OP7-REV):

• Provides real-time, accurate monitoring of engine oil pressure to detect issues early.
• Helps prevent costly engine damage from pressure loss or system failures.
• Includes an early warning system for quick reaction to abnormal pressure levels.
• Offers durable construction and reliable sensor technology for consistent performance.
• Simplifies installation with included wiring and components for a user-friendly setup.

FEATURES:

• Real-Time Monitoring: Displays oil pressure readings from 0 to 150 PSI.
• High-Accuracy Transducer: Utilizes a 3-wire military-grade sensor for precision.
• User-Programmable Alerts: Set warning light thresholds for both low and high pressure.
• Universal Fitment: Fits standard 2-5/8″ openings using a 2.68″ (68mm) hole.
• Included Wiring: Comes with power, lighting, and sensor harnesses for simplified connections.
• Pressure Sensor Included: 300psi-rated sensor designed for compatibility with the gauge’s range.
