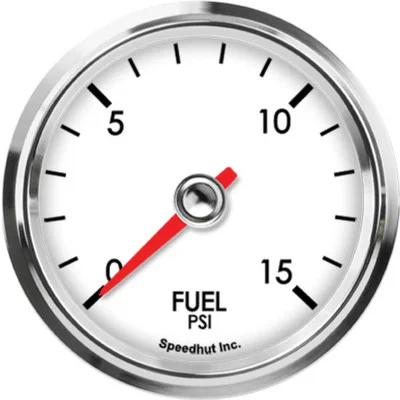

Speedhut 2-5/8″ 0-15 PSI Fuel Pressure Gauge (L25-FP1-LEG)

Description

The Speedhut 2-5/8″ 0-15 PSI Fuel Pressure Gauge (L25-FP1-LEG) provides accurate and reliable monitoring of your vehicle’s fuel system pressure. Designed for a 2 5/8 inch (68mm) mounting hole, this gauge utilizes a high-quality 3-Wire Military Grade Transducer to deliver precise readings within the 0-15 PSI range. This essential instrument allows you to keep a close eye on fuel delivery, which is critical for optimal engine performance and preventing potential issues.

KEY FEATURES AND BENEFITS:

• Accurate Measurement: The 3-Wire Military Grade Transducer ensures highly accurate and consistent fuel pressure readings, providing you with the data you need to maintain your engine’s health.
• Optimal Size: The 2-5/8 inch (68mm) size offers a balance between visibility and fitting into most gauge clusters or mounting locations.
• Complete Kit: This gauge ships with all the necessary components for installation, including a pressure sensor and wiring harnesses, saving you time and effort.
• Reliable Technology: The use of a military-grade transducer signifies a focus on robustness and longevity, ensuring the gauge will perform reliably over time.
• Easy Integration: Designed for a standard 2.67″ (68mm) hole, installation is straightforward in compatible setups.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-15 PSI
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Included:
• Pressure Sensor – 30 PSI
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Prepare the Mounting Location: Ensure you have a 2.67″ (68mm) diameter hole in your desired mounting location.
2. Install the Gauge: Carefully insert the Speedhut fuel pressure gauge into the prepared mounting hole, securing it from the back using the appropriate hardware (not included, as it varies by mounting surface).
3. Mount the Pressure Sensor: Choose a suitable location on your fuel system to install the included 30 PSI pressure sensor. Ensure the sensor is properly threaded and sealed to prevent leaks.
4. Connect the Wiring Harness (Sensor): Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the fuel pressure gauge. Refer to the wiring diagram provided with the gauge for correct connections.
5. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the designated terminals on the back of the gauge. Typically, this will involve connections for power, ground, and illumination (if applicable).
6. Route and Secure Wires: Neatly route all wiring away from moving parts and heat sources. Secure the wires using zip ties or other suitable fasteners.
7. Test the Gauge: Once all connections are made, carefully start your vehicle and observe the fuel pressure reading on the gauge to ensure it is functioning correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-15 PSI FUEL PRESSURE GAUGE (L25-FP1-LEG):

• Utilizing the Speedhut 2-5/8″ 0-15 PSI Fuel Pressure Gauge allows you to proactively monitor your vehicle’s fuel system.
• This is crucial for maintaining optimal engine performance, as proper fuel pressure ensures the correct amount of fuel is being delivered to the engine at all times.
• By having a real-time visual indication of your fuel pressure, you can quickly identify potential issues such as a failing fuel pump, clogged fuel filter, or pressure regulator problems before they lead to more significant and costly damage.
• Consistent monitoring can also aid in diagnosing performance issues and ensuring your engine is running efficiently.

FEATURES:

• Provides precise fuel pressure readings from 0 to 15 PSI.
• Employs a robust 3-wire military-grade transducer for reliable data.
• Designed to fit a standard 2.67″ (68mm) mounting aperture.
• Includes a 30 PSI pressure sensor suitable for measuring fuel pressure.
• Comes with a dedicated 3-wire cable for connecting the pressure sensor to the gauge.
• Shipped with a 3 ft power and lighting harness for easy electrical connections (for LED illumination, if applicable).
• Offers a clear and easy-to-read display of fuel pressure.
• Contributes to proactive vehicle maintenance by allowing early detection of fuel system anomalies.
