Speedhut 2-1/16″ Programmable Fuel Level Gauge w/Warning (R2-FL1-DATZ)

Description

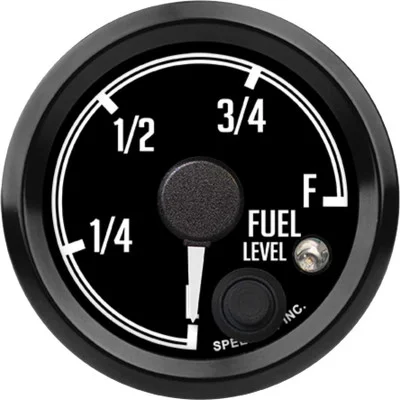

The Speedhut 2-1/16″ Programmable Fuel Level Gauge w/Warning (R2-FL1-DATZ) offers precise and dependable fuel level monitoring for a wide range of vehicles. This 2 1/16 inch (52mm) gauge is designed for compatibility with most standard fuel level sensors that operate within the 0-300 ohm resistance range. Its programmable nature allows for seamless integration with various fuel systems, providing accurate readings from Empty to Full. The added benefit of a built-in low fuel warning light enhances driver awareness, helping to prevent unexpected fuel depletion. Engineered for straightforward installation and reliable performance, this gauge is a practical addition to any vehicle requiring accurate fuel level indication.

KEY FEATURES AND BENEFITS:

• Highly adaptable, capable of being programmed to work with fuel level sensors ranging from 0 to 300 ohms, covering OEM and aftermarket fuel level sending units.
• Includes built-in preset ohm ranges for common sensor types, and offers manual calibration for custom or less conventional sensor values.
• Step-by-step motor integration ensures smooth and accurate needle movement, providing reliable fuel level readings at all times.
• Low fuel warning light provides a visual alert when the fuel level drops to a critical point, enhancing safety and convenience.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Range: E-F
• Fuel Level Signal Type: 300 ohms or less
• Size: 2 1/16 inch
• Hole Size: 2.05 inch (52mm)
• Warning Light: Yes
• Included: Wiring Harness (2-Wire Cable), 3 ft Power & Lighting Harness

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.05 inch (52mm) diameter hole in your vehicle’s dashboard or instrument panel. Secure the gauge in place using the provided mounting spin ring.
• Connect the Wiring Harness: Attach the 2-wire wiring harness to the designated terminals on the back of the fuel level gauge.
• Connect the Power and Lighting Harness: Connect the 3 ft power & lighting harness to the appropriate power source, ground, and lighting circuit in your vehicle, following your vehicle’s wiring diagram.
• Select the Fuel Level Signal Type: Determine the ohm range of your fuel level sending unit (typically found in your vehicle’s service manual or the sensor’s documentation).
• Program the Gauge (if necessary):
• Preset Range: If your fuel level sensor’s ohm range matches one of the built-in preset options, follow the gauge’s instructions to select the corresponding preset.
• Manual Calibration: If your sensor has a custom range, follow the manual calibration procedure outlined in the gauge’s documentation. This usually involves emptying and filling the fuel tank while setting the corresponding empty and full points on the gauge.
• Test the Gauge: With the wiring and programming complete, turn on your vehicle’s ignition to ensure the gauge powers up and displays the correct fuel level as the fuel level changes. Verify that the low fuel warning light illuminates when the fuel level is low.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ PROGRAMMABLE FUEL LEVEL GAUGE W/WARNING (R2-FL1-DATZ):

• Accurate fuel level monitoring for reliable and clear indications of remaining fuel.
• Wide compatibility with a variety of fuel level sensors, both OEM and aftermarket, for versatile use.
• Smooth and precise needle movement, driven by a reliable stepper motor, ensures dependable readings.
• Straightforward setup with preset options and manual calibration for easy configuration.

FEATURES:

• Adaptable programming for fuel level sensors ranging from 0 to 300 ohms.
• Pre-configured ohm ranges for swift and simple setup with common sensors.
• Capability for user-defined calibration to suit unique sensor specifications.
• Precise needle movement driven by a reliable stepper motor.
• Integrated indicator light to signal low fuel conditions.
• Designed for straightforward integration into diverse fuel system configurations.
• User-friendly setup process for both standard and customized applications.
