Description

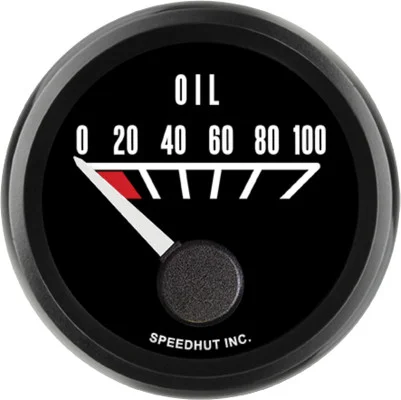

The Speedhut 2-1/16″ Pontiac 0-100PSI Oil Pressure 90° Sweep (L2-OP6-PTC) is a vital instrument for monitoring your Pontiac’s engine lubrication system. This gauge provides real-time pressure readings, allowing you to stay informed about your engine’s health and prevent potential damage. Designed for accuracy and reliability, it’s an essential tool for any Pontiac enthusiast or owner who values their vehicle’s performance.
KEY FEATURES AND BENEFITS:
- Accurate Readings: Equipped with a 3-wire military-grade transducer, this gauge delivers precise and dependable oil pressure measurements.
- Enhanced Reliability: The performance-oriented transducer ensures consistent readings under various operating conditions.
- Direct Fit: The 2-1/16″ (52mm) size is a common standard, making it suitable for various gauge pods and installations.
- Complete Installation Kit: The gauge ships with all the necessary components for installation, including the wiring harness and pressure sensor.
- Easy Integration: Designed with Pontiac vehicles in mind, although specific styling details are not provided, its functionality is perfectly suited for monitoring oil pressure in these applications.
SPECIFICATIONS:
- Gauge Type: Pressure Gauge
- Gauge Subtype: Oil Pressure Gauge
- Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
- Range: 0-100 psi
- Size: 2 1/16 inch (52mm)
- Hole Size: 2.062″ (52mm)
- Warning Light: No
- Ships With:
- Pressure Gauge Wiring Harness (3-Wire Cable)
- Pressure Sensor – 100 psi
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
HOW TO USE:
- Mount the Gauge: Install the 2-1/16″ (52mm) gauge into your desired location using the appropriate mounting hardware (not included). Ensure the mounting area has the required 2.062″ diameter opening.
- Install the Pressure Sensor: Locate the appropriate port on your Pontiac’s engine for the oil pressure sensor. Thread the included 100 psi pressure sensor into this port.
- Connect the Wiring Harness (Sensor): Connect the 3-wire cable from the pressure gauge wiring harness to the terminals on the 3-wire pressure sensor. Ensure a secure connection.
- Connect the Wiring Harness (Gauge): Connect the other end of the pressure gauge wiring harness to the corresponding terminals on the back of the Speedhut oil pressure gauge.
- Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the designated power and ground terminals on the back of the gauge. If your gauge features backlighting, connect the lighting wire to your vehicle’s lighting circuit (e.g., parking lights) for illumination when the lights are on.
- Ground the Gauge: Ensure the gauge has a good ground connection for accurate readings and proper operation.
- Test the Gauge: With the ignition on (and engine running), observe the gauge to ensure it is displaying the correct oil pressure readings. Consult your vehicle’s service manual for expected oil pressure values.
BENEFITS OF USING THE SPEEDHUT 2-1/16″ PONTIAC 0-100PSI OIL PRESSURE 90° SWEEP (L2-OP6-PTC):
- Real-Time Monitoring: Actively track your engine’s oil pressure to detect issues early.
- Damage Prevention: Identifies pressure drops or spikes that could lead to costly engine repairs.
- Peace of Mind: High-quality transducer provides reliable data about engine lubrication health.
- Optimized Performance: Helps ensure your engine operates within safe pressure ranges.
- Essential Feedback: Offers vital visual cues to maintain proper engine maintenance routines.
FEATURES:
- Displays oil pressure readings from 0 to 100 psi.
- Compact 2-1/16 inch (52mm) diameter for versatile mounting options.
- Utilizes a high-performance, 3-wire military-grade pressure transducer for superior accuracy.
- Designed for electrical operation, ensuring consistent and reliable data transmission.
- Includes a dedicated wiring harness specifically for the pressure sensor connection.
- Comes with a separate power and lighting harness for easy electrical hookup.
- The 52mm mounting size ensures compatibility with standard gauge pods.
- Provides essential data for maintaining optimal engine lubrication and preventing damage.
