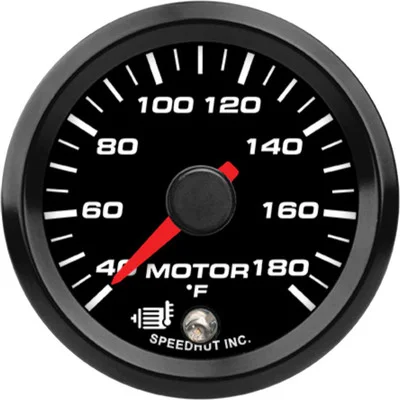

Speedhut 2-1/16″ 40-180F EV Motor Temp Gauge w/Warning (FAE2-T4-EV)

Description

The Speedhut 2-1/16″ 40-180F EV Motor Temp Gauge w/Warning (FAE2-T4-EV) is an essential instrument for any electric vehicle owner looking to maintain optimal performance and prolong the lifespan of their motor. This 2-1/16″ (52mm) gauge provides accurate, real-time monitoring of your EV motor’s temperature, allowing you to stay informed about its thermal state. Designed for seamless integration with your vehicle’s CAN-Bus system (operating at a 500K baud rate), this gauge delivers reliable data to help you make informed decisions about your driving and maintenance. The integrated warning light provides an immediate visual cue if the motor temperature exceeds a critical threshold, allowing for prompt action to prevent potential damage.

KEY FEATURES AND BENEFITS:

• Real-time Temperature Monitoring: Provides continuous and accurate readings of your electric vehicle’s motor temperature, ranging from 40 to 180 degrees Fahrenheit.
• Early Overheat Detection: Features a built-in warning light that illuminates when the motor temperature reaches 160°F, alerting you to potential overheating issues.
• CAN-Bus Integration: Designed to communicate directly with your EV’s CAN-Bus system (500K baud rate) for reliable and efficient data acquisition.
• Compact Size: The 2-1/16″ (52mm) diameter ensures it can be easily installed in various locations without taking up excessive space.
• Performance and Longevity: By monitoring and maintaining optimal motor temperatures, you can contribute to maximizing the performance and extending the operational life of your electric vehicle’s motor.
• Compatibility: Engineered for compatibility with electric vehicle CAN-Bus systems, with specific mention of potential integration with AEM systems.

SPECIFICATIONS:

• Gauge Type: Motor Temperature
• Temperature Range: 40-180 degrees Fahrenheit
• Size: 2-1/16 inch (52mm)
• Mounting Hole Size: 2.10 inches (54mm)
• Signal Type: CAN-Bus (500K baud rate)
• Warning Light Activation: 160 degrees Fahrenheit
• Included:
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • EV CAN Jumper Harness
  • EV CAN Harness

HOW TO USE:

1. Installation: Mount the 2-1/16″ gauge in a suitable 2.10″ (54mm) diameter opening in your vehicle’s dashboard or instrument panel.
2. Wiring Connection: Connect the provided harnesses. The EV CAN Harness will interface with your vehicle’s CAN-Bus system. The Power & Lighting Harness will provide power to the gauge and illumination for the LED lighting. Ensure all connections are secure and correct according to the wiring diagrams provided with the product.
3. CAN-Bus Hookup: Utilize the EV CAN Jumper Harness to properly connect the gauge to the EV’s CAN-Bus network. Ensure the gauge is correctly reading data at the 500K baud rate.
4. Monitoring: Once installed and connected, the gauge will display the real-time temperature of your electric vehicle’s motor as you drive.
5. Warning Indication: If the motor temperature exceeds 160°F, the integrated warning light on the gauge will illuminate, indicating a potential overheating condition. Take appropriate action as needed.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 40-180F EV MOTOR TEMP GAUGE W/WARNING (FAE2-T4-EV):

• Improved Motor Efficiency: Maintaining the motor within its optimal temperature range ensures it operates at peak efficiency, potentially maximizing range and power output.
• Reduced Risk of Overheating: The real-time monitoring and warning system help prevent the motor from overheating, which can cause significant damage and costly repairs.
• Extended Motor Lifespan: By operating the motor within recommended temperature limits, you can contribute to a longer lifespan for this vital component of your electric vehicle.
• Increased Driver Awareness: Having a clear and immediate indication of the motor’s temperature allows you to adjust driving habits or take necessary maintenance steps to ensure optimal performance and safety.
• Enhanced Vehicle Reliability: Consistent monitoring and timely intervention based on temperature readings can contribute to the overall reliability and dependability of your electric vehicle.

FEATURES:

• Precise Analog Display: Offers an easy-to-read visual representation of the motor’s temperature between 40 and 180 degrees Fahrenheit.
• Integrated Visual Alert: The dedicated warning light provides a clear indication when the motor’s temperature exceeds the preset limit of 160°F.
• Streamlined Data Communication: Utilizes the vehicle’s CAN-Bus network for efficient and accurate temperature data acquisition.
• Standardized Gauge Size: The 2-1/16″ format ensures compatibility with a wide range of gauge pods and mounting solutions.
• Direct CAN Interface: Specifically designed to tap into and interpret data from the EV’s communication network.
• Included Wiring Solutions: Comes with all necessary harnesses for straightforward power, lighting, and CAN-Bus connectivity.
