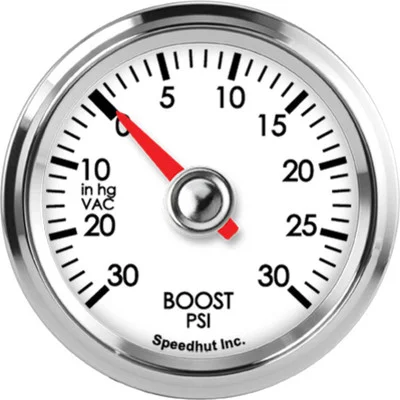

Speedhut 2-1/16″ 30inhg-0-30 PSI Boost/Vac Gauge (L2-BV4-LEG)

Description

The Speedhut 2-1/16″ 30inhg-0-30 PSI Boost/Vac Gauge (L2-BV4-LEG) is an essential instrument for monitoring the performance of turbocharged or supercharged engines. This analog gauge provides accurate readings of both intake manifold vacuum (up to 30 inches of mercury) and positive boost pressure (up to 30 pounds per square inch). Its 2-1/16 inch (52mm) size makes it a versatile fit for various gauge pods and mounting locations. Designed for reliability and precision, this gauge utilizes a high-quality 3-wire military-grade transducer to deliver consistent and accurate measurements. The included installation hardware ensures a straightforward setup, allowing you to keep a close eye on your engine’s vital pressure levels.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Measures both vacuum (up to 30 inHg) and boost pressure (up to 30 PSI), providing comprehensive engine performance monitoring.
• Accurate Readings: Employs a 3-wire military-grade pressure transducer, known for its performance and reliability in delivering precise measurements.
• Standard Size: The 2-1/16 inch (52mm) diameter ensures compatibility with a wide range of aftermarket gauge mounts and pods.
• Complete Installation Kit: Ships with all necessary components, including power and lighting harnesses, a pressure gauge wiring harness, and a boost/vacuum hose kit, simplifying the installation process.
• Easy Mounting: Includes a gauge mounting ring for secure and straightforward installation in the designated 2.062″ (52mm) hole.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 30inhg-0-30 psi
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062” (52mm)
• Standard or Metric: Standard
• Gauge Mounting Ring: Included
• Ships With: 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks, Pressure Gauge Wiring Harness (3-Wire Cable), Boost/Vac Hose Kit, Pressure Sensor – 30 psi

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.062″ (52mm) diameter hole in your vehicle’s dashboard or gauge pod. Insert the gauge and secure it using the included gauge mounting ring.
• Install the Pressure Sensor: Find a suitable location on your engine’s intake manifold or a designated boost/vacuum source. Install the included 30 PSI pressure sensor, ensuring it is properly sealed.
• Connect the Hose: Attach one end of the provided boost/vac hose to the pressure sensor. Run the hose to the gauge location and connect the other end to the designated port on the back of the gauge.
• Wire the Power and Lighting: Connect the 3 ft power and lighting harness to a suitable 12V power source in your vehicle (typically an ignition-switched power source and a ground). Connect the other end of this harness to the corresponding connector on the back of the gauge.
• Connect the Pressure Sensor Wiring: Use the included pressure gauge wiring harness (3-wire cable) to connect the pressure sensor to the designated connector on the back of the gauge. Ensure the wires are connected correctly according to the gauge’s wiring diagram (if provided).
• Test the Gauge: Once all connections are made, start your vehicle and observe the gauge readings to ensure it is functioning correctly and displaying accurate boost and vacuum levels.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 30INHG-0-30 PSI BOOST/VAC GAUGE (L2-BV4-LEG):

• Real-time Monitoring: Provides immediate and continuous feedback on your engine’s boost and vacuum levels, allowing you to stay informed about its performance.
• Early Problem Detection: Enables you to identify potential issues such as vacuum leaks or over-boosting conditions before they lead to more significant problems.
• Performance Optimization: Crucial for tuning and adjusting your engine’s boost levels for optimal power and efficiency.
• Enhanced Engine Awareness: Gives you a better understanding of how your engine is operating under various driving conditions.
• Reliable and Accurate Readings: The military-grade transducer ensures precise measurements, giving you confidence in the information displayed.

FEATURES:

• Clear Analog Display: Offers an easy-to-read visual representation of boost and vacuum levels.
• Performance-Oriented Sensor: The 3-wire military-grade transducer is engineered for accurate and responsive readings under demanding conditions.
• Direct Electrical Connection: Utilizes an electrical signal from the pressure sensor to the gauge, potentially offering more accurate readings compared to some mechanical setups.
• Comprehensive Wiring Included: Comes with dedicated harnesses for both power/lighting and the pressure sensor, simplifying the electrical connections.
• All Necessary Plumbing Included: The boost/vac hose kit provides the physical connection required for pressure readings.
