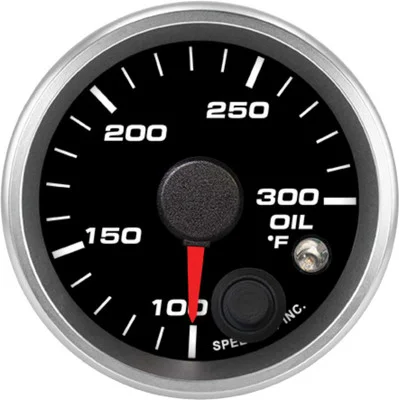

Speedhut 2-1/16″ 100-300F Oil Temp Gauge w/ Warning (R2-OT1-REV)

Description

The Speedhut 2-1/16″ 100-300F Oil Temp Gauge w/ Warning (R2-OT1-REV) is designed to provide precise and reliable monitoring of your engine’s oil temperature. This gauge allows you to keep a close watch on a critical aspect of your vehicle’s health, helping to prevent potential damage from overheating. Featuring a built-in warning light, you can set a temperature threshold to alert you if your oil temperature exceeds safe levels. This gauge comes complete with the necessary sensor and wiring harnesses for straightforward installation.

KEY FEATURES AND BENEFITS:

• Accurate Oil Temperature Monitoring: Provides precise readings of your engine’s oil temperature within the 100-300 degrees Fahrenheit range.
• Integrated Warning Light: Features a user-settable warning LED that illuminates when a predetermined temperature is reached, alerting you to potential issues.
• Complete Kit: Ships with the necessary 2-Wire Performance Temperature Sender and wiring harnesses, ensuring you have everything needed for installation.
• Standard Size: The 2-1/16 inch (52mm) size makes it compatible with many standard gauge pods and mounting solutions.
• Easy Installation: Designed for mounting in a 2.10″ (54mm) hole with an included spin-lock ring.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Oil Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 100-300 F
• Size: 2 1/16 inch
• Hole Size: 2.10 inches (54mm)
• Standard or Metric: Standard
• Warning Light: Yes
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Speedhut Temperature Sensor
• Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.10″ (54mm) diameter opening in your vehicle’s dashboard or gauge pod. Secure the gauge in place using the provided spin-lock ring.
2. Install the Temperature Sender: Identify an appropriate location on your engine to install the included 2-Wire Performance Temperature Sender, typically in an oil galley or pan. Ensure a proper seal to prevent leaks.
3. Connect the Wiring Harnesses:
   • Connect one end of the Temperature Gauge Wiring Harness (2-Wire Cable) to the terminals on the temperature sender. Connect the other end to the corresponding terminals on the back of the oil temperature gauge.
   • Connect the 3 ft Power & Lighting Harness to the power and ground terminals on the back of the gauge, as well as to a suitable power source and ground in your vehicle’s electrical system. This harness also powers the LED illumination.
4. Set the Warning Light (if applicable): Refer to the gauge’s instructions on how to set the desired temperature threshold for the internal warning LED.
5. Verify Operation: Once all connections are made, start your vehicle and observe the gauge reading. Ensure the pointer moves appropriately as the oil temperature changes. Check that the warning light functions as expected when the set temperature is reached.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 100-300F OIL TEMP GAUGE W/ WARNING (R2-OT1-REV):

• Monitoring your engine’s oil temperature is crucial for maintaining optimal performance and preventing costly damage.
• This Speedhut gauge provides you with a clear and accurate indication of your oil’s temperature, allowing you to identify potential overheating issues before they become serious problems.
• The integrated warning light offers an extra layer of protection by immediately alerting you if your oil temperature rises to a critical level.
• By having this information readily available, you can take proactive steps to ensure the longevity and reliability of your engine.
• The included high-quality sender and wiring simplify the installation process, making it easier to integrate this essential monitoring tool into your vehicle.

FEATURES:

• Provides real-time oil temperature readings in Fahrenheit.
• Equipped with an internal LED that can be configured to illuminate at a specific temperature.
• Utilizes a precise 2-wire temperature sensor for accurate data.
• Designed to fit standard 2 1/16 inch (52mm) gauge openings.
• Mounts securely with the included spin-lock mechanism.
• Illuminated for clear visibility in low-light conditions via the included power and lighting harness.
• Comes with all necessary wiring for connecting the sensor and power.
