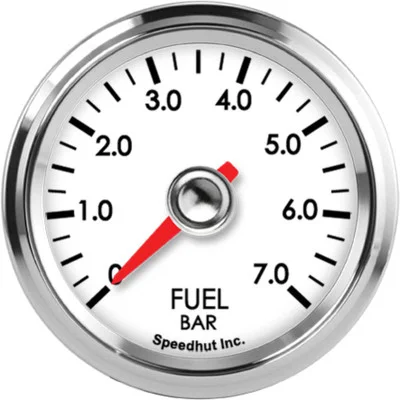

Speedhut 2-1/16″ 0-7.0 Bar Fuel Pressure Gauge (L2-FP7-LEG)

Description

The Speedhut 2-1/16″ 0-7.0 Bar Fuel Pressure Gauge (L2-FP7-LEG) is designed to provide accurate and reliable monitoring of your vehicle’s fuel system pressure. With a metric range of 0 to 7.0 Bar, this gauge allows you to keep a close eye on a critical aspect of engine performance. Its classic styling ensures it integrates seamlessly into a variety of dashboards. The included high-performance 3-wire military-grade transducer delivers precise readings, giving you confidence in the data you’re receiving. This gauge is essential for ensuring your engine is receiving the correct amount of fuel for optimal operation and can aid in diagnosing potential fuel system issues.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise fuel pressure readings from 0 to 7.0 Bar, allowing for careful observation of fuel system performance.
• Reliable Sensor: Includes a high-quality 3-wire military-grade transducer, known for its accuracy and dependability in demanding environments.
• Easy Installation: Comes with all necessary wiring harnesses, including power, lighting, and sensor connections, simplifying the setup process.
• Metric Measurement: Displays readings in Bar, a common and easily understandable metric unit for pressure.
• Standard Size: The 2-1/16″ (52mm) size is a common automotive gauge dimension, making it compatible with many gauge pods and mounting solutions.
• Illuminated Display: Features LED lighting via the included harness for excellent visibility during nighttime driving conditions.

SPECIFICATIONS:

• Standard or Metric: Metric
• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-7.0 bar
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Sensor – 100 psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Secure the 2-1/16″ Fuel Pressure Gauge in your desired location using the spin-lock ring or appropriate mounting solution for the 2.062″ (52mm) hole.
2. Install the Pressure Sensor: Mount the included pressure sensor (1/8″ NPT thread) at a suitable point in your vehicle’s fuel system. Ensure a proper and leak-free connection.
3. Connect the Wiring Harness (Sensor): Attach the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a suitable 12V power source in your vehicle. This harness will also power the LED illumination of the gauge.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct before applying power.
6. Start Your Vehicle: Once all connections are verified, start your vehicle and observe the fuel pressure reading on the gauge.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-7.0 BAR FUEL PRESSURE GAUGE (L2-FP7-LEG):

• Using this fuel pressure gauge provides several key advantages for vehicle owners and enthusiasts.
• It allows for continuous monitoring of fuel pressure, a critical factor in engine performance and longevity.
• You can quickly identify potential issues such as a failing fuel pump, clogged fuel filter, or pressure regulator malfunction.
• Proactive monitoring can help prevent more significant engine damage and ensure optimal fuel delivery for efficient combustion and power output.
• The accurate readings provided by the included high-performance transducer offer a reliable source of information, giving you peace of mind and the ability to make informed decisions about your vehicle’s maintenance and performance tuning.

FEATURES:

• Displays fuel pressure: in a clear analog format.
• Compact 2-1/16″ size: for versatile mounting options.
• Classic aesthetic: designed to complement various interior styles.
• Precise transducer: utilizes a 3-wire design for accurate readings.
• LED backlighting: for enhanced night visibility.
• Complete wiring included: for power, illumination, and sensor connection.
