Description

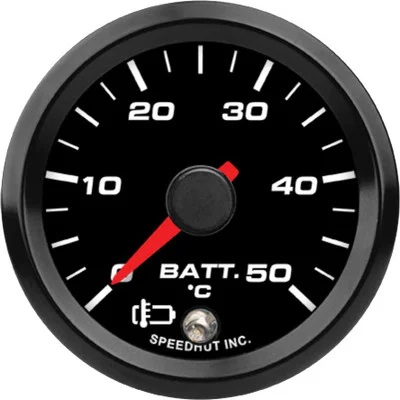

The Speedhut 2-1/16″ 0-50C EV Battery Temp Gauge w/ Warning (FOR2-T2-EV) is an essential tool for monitoring the thermal condition of your electric vehicle’s battery. This precision instrument provides real-time temperature data within a 0-50°C range, helping you ensure optimal battery performance and lifespan. It seamlessly integrates with your EV’s CAN-bus system at a 500K baud rate and includes a built-in warning light that activates above 40°C to alert you to potential overheating. With simple installation and accurate monitoring, this gauge is a crucial addition to any EV setup focused on safety and efficiency.
KEY FEATURES AND BENEFITS:
- Real-time Temperature Monitoring: Continuously tracks EV battery temperature within a 0-50°C range.
- CAN-bus Integration: Operates with the EV’s CAN-bus system at a 500K baud rate for accurate data retrieval.
- Built-in Warning Alert: Integrated LED warning light triggers when temperatures exceed 40°C.
- Thermal Management Support: Helps maintain safe operating temperatures to optimize battery efficiency and lifespan.
- Compact Design: 2-1/16 inch (52mm) size for easy dashboard integration.
- Complete Wiring Solution: Includes Power & Lighting Harness, EV CAN Jumper Harness, and EV CAN Harness for straightforward installation.
SPECIFICATIONS:
- Gauge Type: Battery Temperature
- Signal Type: CAN-Bus (500K baud rate)
- Range: 0-50°C
- Size: 2 1/16 inch
- Standard or Metric: Metric
- Hole Size: 2.10 inches (54mm)
- Warning Light Activation: Above 40°C
- Included: 3 ft Power & Lighting Harness, EV CAN Jumper Harness, EV CAN Harness
HOW TO USE:
- Installation: Mount the gauge using a 2.10 inch (54mm) hole in your desired dashboard location.
- Wiring Connection: Attach the included 3 ft Power & Lighting Harness to the EV’s power and lighting systems according to provided instructions.
- CAN-bus Integration: Use the EV CAN Jumper Harness and EV CAN Harness to connect the gauge to your vehicle’s CAN-bus at a 500K baud rate.
- Monitoring: View real-time temperature readings displayed clearly on the gauge.
- Warning Indication: If the temperature exceeds 40°C, the integrated LED light will activate to alert the driver.
BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-50C EV BATTERY TEMP GAUGE W/ WARNING (FOR2-T2-EV):
- Provides real-time insight into the thermal status of your EV battery, enabling better thermal management.
- Helps prevent damage due to overheating by offering an early warning via the built-in LED indicator.
- Supports longer battery life through proactive temperature regulation and awareness.
- Ensures accurate data thanks to digital CAN-bus connectivity at 500K baud rate.
- Improves overall EV safety by alerting you to unsafe thermal conditions before they escalate.
FEATURES:
- Delivers live EV battery temperature readings through a CAN-bus connection.
- Displays temperature in Celsius with a 0-50°C measurement range.
- Compact 2 1/16 inch design for flexible installation options.
- LED warning light triggers above 40°C for instant alerts.
- Specifically designed for electric vehicle battery system monitoring.
- Includes complete wiring kit: power, lighting, and CAN-bus harnesses.
