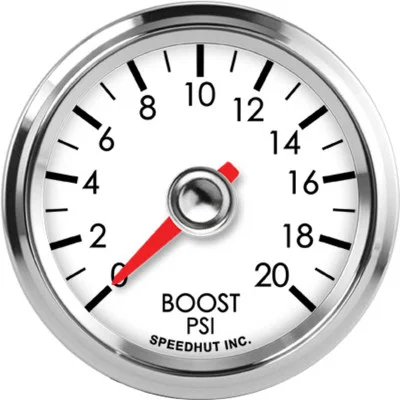

Speedhut 2-1/16″ 0-20 PSI Boost Gauge (L2-B3-LEG)

Description

Speedhut 2-1/16″ 0-20 PSI Boost Gauge (L2-B3-LEG) is designed to monitor your engine’s vital boost and vacuum levels, making it an essential tool for turbocharged or supercharged vehicles. This analog gauge delivers precise and reliable readings, ensuring you can maintain optimal engine performance. With its standard 2 1/16 inch size, the gauge is compatible with a variety of aftermarket gauge pods and mounting solutions, providing both functionality and versatility for your vehicle’s setup.

KEY FEATURES AND BENEFITS:

• Accurate Measurement: Provides precise readings of boost pressure from 0 to 20 PSI and also measures vacuum, offering a complete view of your engine’s pressure dynamics.
• High-Performance Sensor: Utilizes a 3-wire military-grade transducer, ensuring accurate and consistent pressure readings for reliable performance monitoring.
• Standard Sizing: The 2 1/16 inch (52mm) diameter and 2.062 inch mounting hole make it a direct fit for many standard gauge openings.
• Complete Wiring Included: Comes with a dedicated pressure gauge wiring harness (3-wire cable) and a 3 ft power & lighting harness for easy electrical connections.
• Included Pressure Sensor: Ships with a 30 PSI pressure sensor, ready for connection to your vehicle’s boost/vacuum source.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-20 psi
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Measurement System: Standard (PSI for boost, inches of mercury for vacuum)
• Warning Light: No
• Ships With:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 30 psi
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Secure the 2 1/16″ gauge in your desired location using a compatible gauge pod or mounting solution that fits a 2.062″ opening.
2. Connect the Pressure Sensor: Install the included 30 PSI pressure sensor to a suitable vacuum/boost port on your engine’s intake manifold or relevant boost plumbing.
3. Run the Wiring: Route the 3-wire cable from the pressure sensor to the back of the gauge, connecting the wires according to the gauge’s wiring diagram (typically provided with the product).
4. Connect Power and Lighting: Connect the 3 ft power & lighting harness to a suitable 12V power source in your vehicle (ignition switched is recommended) and to the gauge’s power and illumination terminals. Ensure proper grounding.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
6. Test the Gauge: Start your vehicle and observe the gauge readings to confirm proper operation. The gauge should display vacuum at idle and increase into the boost range under acceleration.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-20 PSI BOOST GAUGE (L2-B3-LEG):

• Engine Performance Monitoring: Allows you to closely monitor your engine’s boost and vacuum levels, crucial for understanding turbocharger or supercharger performance and identifying potential issues.
• Early Problem Detection: By observing pressure trends, you can potentially detect problems like boost leaks or turbocharger malfunctions before they lead to more significant engine damage.
• Ensuring Optimal Operation: Helps you ensure your engine is operating within its intended boost range, contributing to optimal power output and fuel efficiency.
• Easy Installation: The standard size and included wiring and sensor simplify the installation process for both DIY enthusiasts and professional installers.
• Reliable Readings: The utilization of a military-grade transducer provides accurate and consistent data, giving you confidence in the information displayed.

FEATURES:

• Analog Display: Provides a classic and easily readable visual representation of boost and vacuum levels.
• Military-Grade Transducer: Offers enhanced accuracy and long-term reliability in demanding automotive environments.
• Standard 2 1/16″ Size: Ensures broad compatibility with various gauge mounting options.
• Dedicated Wiring Harnesses: Simplifies electrical connections for the pressure sensor and power/lighting.
• Included 30 PSI Sensor: Provides a ready-to-use pressure sensing solution for your vehicle.
• Designed for LED Lighting: Prepared for integration with your vehicle’s or aftermarket LED lighting system for clear night visibility.
