Description

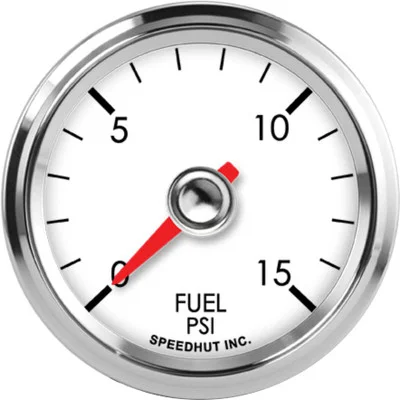

The Speedhut 2-1/16″ 0-15 PSI Fuel Pressure Gauge (L2-FP1-LEG) is designed to provide accurate and reliable monitoring of your vehicle’s fuel system pressure within a 0-15 PSI range. This analog gauge features a classic design suitable for a variety of automotive applications. It comes equipped with a high-performance 3-wire military-grade transducer, ensuring precise readings under demanding conditions. The necessary wiring harness for installation is included, along with a 30 PSI pressure sensor.
KEY FEATURES AND BENEFITS:
- Accurate Monitoring: Provides precise fuel pressure readings from 0 to 15 PSI, allowing you to maintain optimal engine performance.
- High-Performance Sensor: Utilizes a 3-wire military-grade transducer for enhanced accuracy and reliability.
- Complete Wiring: Includes a dedicated pressure gauge wiring harness (3-wire cable) for straightforward connection.
- Included Sensor: Ships with a 30 PSI pressure sensor.
- Standard Size: Features a 2-1/16 inch (52mm) diameter, fitting common gauge mounting locations.
SPECIFICATIONS:
- Gauge Type: Pressure Gauge
- Gauge Subtype: Fuel Pressure Gauge
- Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
- Range: 0-15 psi
- Size: 2 1/16 inch (52mm)
- Hole Size: 2.062” (52mm)
- Wiring Harness: Pressure Gauge Wiring Harness (3-Wire Cable) included
- Pressure Sensor: 30 psi included
- Power & Lighting Harness: 3 ft Power & Lighting Harness included for LED-lit gauges
HOW TO USE:
- Mount the Gauge: Install the 2-1/16″ gauge into a suitable 52mm mounting location in your vehicle’s dashboard or instrument panel. Secure it using the appropriate mounting hardware (not included unless specified).
- Install the Pressure Sensor: Locate an appropriate port on your vehicle’s fuel system to install the included 30 PSI pressure sensor. Ensure the connection is secure and leak-free.
- Connect the Wiring Harness:
- Connect the wires from the provided Pressure Gauge Wiring Harness to the corresponding terminals on the back of the fuel pressure gauge.
- Connect the other end of the harness to the 3-wire terminals of the pressure sensor. Ensure correct polarity and wire matching as per the gauge and sensor’s wiring diagrams (if provided).
- Connect the 3 ft Power & Lighting Harness to a suitable 12V power source (ignition-switched is recommended), a ground connection, and the lighting circuit of the gauge (if applicable).
- Secure Connections: Double-check all wiring connections to ensure they are tight and properly insulated to prevent shorts or loose connections.
- Test the Gauge: With the ignition on, observe the fuel pressure reading on the gauge. It should reflect the current fuel system pressure. Start the engine to verify the gauge responds to changes in fuel pressure.
BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-15 PSI FUEL PRESSURE GAUGE (L2-FP1-LEG):
- Early Problem Detection: Allows you to monitor fuel pressure, which is crucial for identifying potential issues with your fuel pump, fuel filter, or fuel pressure regulator before they lead to performance problems or engine damage.
- Performance Optimization: Ensures your engine is receiving the correct amount of fuel for optimal performance and efficiency.
- Increased Reliability: By keeping a close watch on fuel pressure, you can proactively address any deviations from the normal range, contributing to the overall reliability of your vehicle.
- Classic Aesthetics: The 2-1/16″ size and classic design integrate seamlessly with a wide range of vehicle interiors.
- Quality Components: The inclusion of a military-grade transducer suggests a focus on durability and accurate readings.
FEATURES:
- Analog display for easy and quick reading of fuel pressure.
- Compact 2-1/16″ (52mm) size for versatile mounting options.
- Utilizes a robust 3-wire connection for the pressure sensor.
- Comes with a dedicated wiring harness for the pressure sensor.
- Includes a separate power and lighting harness for easy electrical connections.
- Designed for monitoring fuel pressure in the 0-15 PSI range.
- Shipped with a 30 PSI pressure sensing unit.
