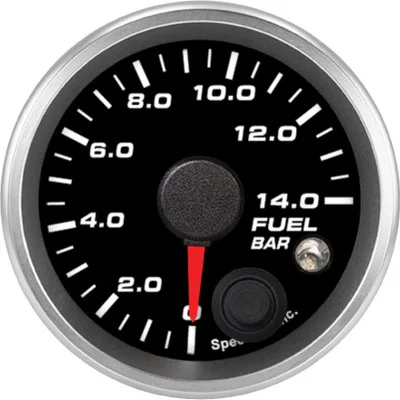

Speedhut 2-1/16″ 0-14.0 Bar Fuel Pressure Gauge w/Warning (R2-FP8-REV)

Description

The Speedhut 2-1/16″ 0-14.0 Bar Fuel Pressure Gauge w/Warning (R2-FP8-REV) is a crucial instrument for monitoring your vehicle’s fuel system pressure with precision. Designed with metric measurements, this gauge provides accurate readings from 0 to 14 bar, allowing you to keep a close eye on fuel delivery and identify potential issues before they lead to performance problems or engine damage. Its 2 1/16 inch (52mm) size ensures it fits standard gauge pods, making installation straightforward. The integrated warning light adds an extra layer of safety, alerting you to any significant deviations in fuel pressure.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise fuel pressure readings from 0 to 14 bar in metric units, essential for optimal engine performance and diagnostics.
• Reliable Sensor: Includes a high-quality 3-wire military-grade transducer, ensuring accurate and consistent pressure measurements under various operating conditions.
• Integrated Warning System: Features a built-in warning light that can be configured to illuminate when fuel pressure falls outside a safe range, providing immediate alerts.
• Standard Fitment: The 2 1/16 inch (52mm) gauge size is compatible with most standard aftermarket gauge pods for easy integration into your vehicle’s interior.
• Complete Wiring Included: Ships with all necessary wiring harnesses, including a 3 ft power & lighting harness and a dedicated pressure gauge wiring harness, simplifying the installation process.
• Included Pressure Sensor: Comes with a 300psi pressure sensor, specifically designed to work with the gauge and transducer for accurate readings within the specified range.

SPECIFICATIONS:

• Standard or Metric: Metric
• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-14 bar
• Size: 2 1/16 inch
• Hole Size: 2.062″ (52mm)
• Warning Light: Yes
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Sensor – 300psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Secure the 2 1/16 inch (52mm) gauge into your desired gauge pod or mounting location in your vehicle. Ensure it is properly positioned and stable.
2. Install the Pressure Sensor: Locate a suitable point in your vehicle’s fuel system to install the provided 300psi pressure sensor. This is typically done on the fuel rail or an appropriate fitting in the fuel line. Ensure all connections are secure and leak-free.
3. Connect the Wiring Harnesses:
   • Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the fuel pressure gauge.
   • Connect the 3 ft power & lighting harness to the gauge’s power and ground terminals, as well as to a suitable 12V power source and ground in your vehicle. This harness also provides power for the gauge’s internal lighting.
4. Configure the Warning Light (if applicable): Some Speedhut gauges allow you to set a threshold for the warning light. Refer to the specific instructions included with your gauge to learn how to set the desired pressure level for the warning light to activate.
5. Test the Installation: Once all connections are made, start your vehicle and observe the fuel pressure reading on the gauge. Ensure the reading is within the expected range for your vehicle’s fuel system. Check for any leaks at the pressure sensor installation point.
6. Monitor Fuel Pressure: Regularly monitor the fuel pressure gauge while your vehicle is running to ensure the fuel system is operating correctly. The warning light will illuminate if the pressure drops below or rises above the set threshold.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-14.0 BAR FUEL PRESSURE GAUGE W/WARNING (R2-FP8-REV):

• Allows proactive monitoring of the fuel system for better performance and fuel efficiency.
• Helps identify issues such as a failing fuel pump or clogged filter before major damage occurs.
• Integrated warning light provides real-time alerts for out-of-range pressure levels.
• Improves diagnostic accuracy and engine protection through reliable data feedback.
• Extends engine life by helping to maintain proper air-fuel ratios and fuel delivery.

FEATURES:

• Clear and easy-to-read metric display showing fuel pressure from 0 to 14 bar.
• Compact 2 1/16″ (52mm) size for versatile mounting options.
• Robust 3-wire military-grade transducer for accurate and dependable readings.
• Bright warning light to alert the driver of abnormal fuel pressure levels.
• Simple electrical connections with included power and sensor wiring harnesses.
• Durable construction designed to withstand the harsh automotive environment.
• Provides essential data for diagnosing fuel system problems.
• Helps ensure optimal air-fuel mixture for efficient engine operation.
• Contributes to preventing potential engine damage due to fuel pressure issues.
• Suitable for a wide range of vehicles utilizing a metric fuel pressure measurement system.
