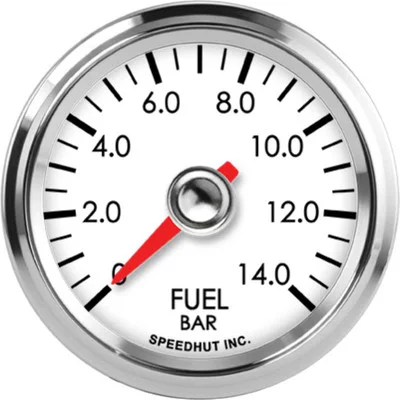

Speedhut 2-1/16″ 0-14.0 Bar Fuel Pressure Gauge (L2-FP8-LEG)

Description

The Speedhut 2-1/16″ 0-14.0 Bar Fuel Pressure Gauge (L2-FP8-LEG) is engineered to deliver highly accurate and reliable fuel pressure monitoring for automotive enthusiasts and professionals. With a metric pressure range of 0 to 14.0 Bar, it enables precise tracking of your fuel system’s performance, ensuring your engine operates at peak efficiency. The included 3-wire military-grade transducer guarantees consistent and trustworthy readings, while the 2-1/16″ (52mm) gauge size ensures compatibility with standard gauge pods. Enhanced with LED backlighting and a user-friendly wiring system, this gauge combines advanced performance monitoring with simple installation and clear visibility under all conditions.

KEY FEATURES AND BENEFITS:

• Precise Monitoring: Displays fuel pressure in the 0-14.0 bar range, supporting accurate tuning and diagnostics.
• Durable Sensor: Equipped with a high-performance 3-wire military-grade transducer for reliable data collection.
• Standard Fit: Compact 2-1/16″ (52mm) gauge size fits most common mounting pods and dashboard inserts.
• LED Backlighting: Ensures excellent visibility in low-light or nighttime driving conditions.
• Complete Kit: Includes all wiring harnesses needed for power, lighting, and sensor connectivity.
• High Pressure Range: Comes with a robust 300psi pressure sensor for compatibility with high-performance fuel systems.

SPECIFICATIONS:

• Standard or Metric: Metric
• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-14.0 bar
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Warning Light: No
• Included:
• Pressure Gauge Wiring Harness (3-Wire Cable)
• Pressure Sensor – 300psi
• 3 ft Power & Lighting Harness

HOW TO USE:

1. Mount the Gauge: Install the 2-1/16″ (52mm) gauge into a compatible pod or dashboard hole (2.062″ diameter).
2. Install the Pressure Sensor: Secure the 300psi sensor at a suitable location in the fuel system using proper fittings to avoid leaks.
3. Connect the Wiring Harness (3-Wire Cable): Attach the sensor wires to the gauge terminals, matching the correct wiring sequence.
4. Connect the Power and Lighting Harness: Wire the 3 ft harness to a switched 12V power source and ground for LED backlighting and gauge function.
5. Verify Connections: Inspect all connections to ensure they are tight and correctly installed.
6. Test the Gauge: Start the vehicle and check the gauge for an accurate fuel pressure reading.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-14.0 BAR FUEL PRESSURE GAUGE (L2-FP8-LEG):

• Allows real-time monitoring of critical fuel system pressure for improved engine performance and safety.
• Helps detect early signs of fuel delivery issues such as clogged filters or failing pumps.
• Supports accurate tuning and calibration in performance or racing setups.
• Military-grade transducer provides reliable and consistent readings even in demanding environments.
• Simple installation process makes it suitable for DIYers and professional mechanics alike.
• LED illumination ensures optimal readability in various lighting conditions.

FEATURES:

• Provides precise fuel pressure readings in metric units (0-14.0 bar).
• Employs a high-performance 3-wire military-grade transducer for accurate data acquisition.
• Compact 2 1/16 inch (52mm) size for versatile mounting options.
• Designed for installation in a standard 2.062 inch (52mm) diameter hole.
• Includes a dedicated 3-wire cable for direct connection to the pressure sensor.
• Comes with a robust 300psi pressure sensor suitable for a wide range of fuel systems.
• Features LED illumination for clear visibility during both day and night.
• Shipped with a 3 ft power and lighting harness for easy electrical connection.
