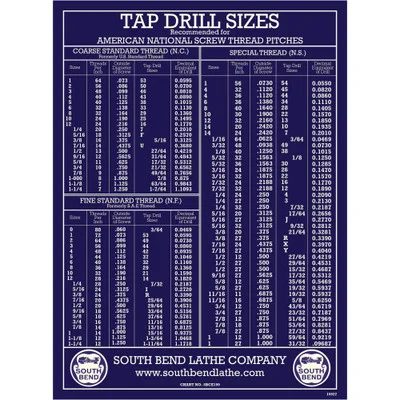

South Bend Wall Chart Tap Drill Sizes (SBCE199) (SBCE0199) offers a convenient and comprehensive reference for coarse, fine, and special thread sizes. This chart, designed in the classic blueprint style, includes screw sizes, threads per inch (TPI), screw OD sizes, tap drill sizes, and decimal drill equivalents.
Measuring 12 inches wide by 18 inches long, this tap drill size wall chart is a must-have for machinists and hobbyists alike. It’s fashioned in a durable design that withstands regular use and adds a practical and aesthetic touch to any workshop.
- Specifications and Dimensions
- Dimensions: 12″ wide x 18″ long
- Classic blueprint style design
- Detailed reference for coarse, fine, and special threads
- Key Features and Benefits
- Includes comprehensive tap drill sizes for various thread types
- Shows TPI, screw OD sizes, and decimal drill equivalents
- Formerly listed as SBCE199 for easy reference
