Description

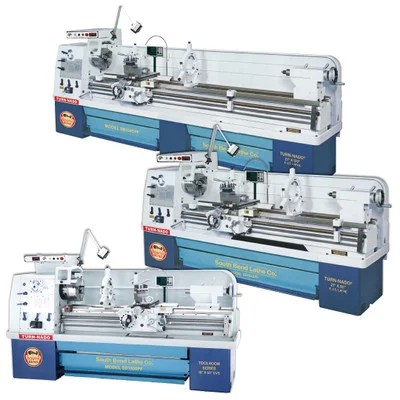

South Bend Turn-Nado® EVS Lathe with Fagor DRO Precision is designed for superior precision in industrial settings. This heavy-duty machine features an 18-inch swing over the bed and a robust 12-1/2 HP motor. Its electronic variable-speed control ranges from 18 to 1800 RPM, allowing machinists to tackle complex tasks with ease.
The enclosed gearbox supports a wide range of threading options, including inch, metric, modular, and diametral pitches. With its front-removable chip tray, 4-way tool post, and emergency stop, this lathe combines convenience with safety for optimal operation in busy toolrooms and manufacturing facilities.
- Specifications and Dimensions
- Swing over bed: 21″
- Spindle bore: 3.15″
- Spindle motor: 12-1/2 HP, 440V, 3-phase, 18A
- Coolant pump motor: 1/8 HP, 0.23A
- Oil pump motor: 1/4 HP, 0.6A
- Swing over cross slide: 14″
- Swing over saddle: 21″
- Swing over gap: 31.1″
- Maximum tool bit size: 1″
- Compound travel: 5.39″
- Cross slide travel: 11″
- Spindle taper: MT #7
- Spindle speeds: variable from 18 – 1800 RPM
- Spindle type: D1-8 camlock
- Tailstock travel: 6-1/2″
- Tailstock taper: MT #5
- Tailstock barrel diameter: 3″
- Longitudinal feeds: 0.0015 to 0.0400 IPR (15)
- Cross feeds: 0.001 to 0.034 IPR (15)
- Inch thread range: 2 to 72 TPI (38 pitches)
- Metric thread range: 0.4 to 14 mm (40 pitches)
- Modular threads: 0.3 to 3.5 (18 pitches)
- Diametral threads: 8 to 44 (21 pitches)
- Bed width: 13.58″
- Distance between centers: 80″
- Carriage travel: 79″
- Overall dimensions: 130-1/4″ W x 27″ D x 62-1/4″ H
- Key Features and Benefits
- Fagor 2-axis DRO for accurate carriage positioning
- Meehanite castings with 3 V-Way bed for maximum durability
- Enclosed gearbox for inch, metric, modular, and diametral threading
- Allen-Bradley components and Yaskawa G7A4011 inverter for reliability
- Complete coolant system and sliding chip tray for easy maintenance
