Description

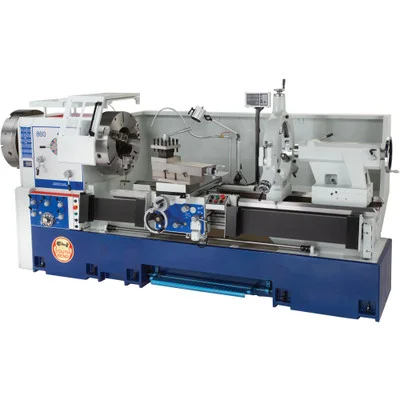

South Bend Big Bore Lathe with 9″ Bore is engineered for heavy-duty projects with its powerful 30 HP motor and impressive 9-inch spindle bore. Ideal for large-diameter workpieces like oil pipes or hydraulic cylinders, this lathe is precision-built with ultra-tight tolerances and a high-performance spindle design to ensure reliable, consistent results.
This Big Bore Lathe is fully customizable, allowing buyers to select and precision-fit only the accessories needed. Each unit undergoes factory dial-in to maximize accuracy upon delivery. Available in configurations with swings up to 38 inches and distances between centers of 72 to 132 inches, the SB1065F meets the demands of serious machining applications.
- Specifications and Dimensions
- Motor: 30 HP, 3-Phase
- Spindle Bore: 9 inches
- Spindle Type: A2-15
- Spindle Speeds: 6 – 500 RPM
- Tailstock Taper: MT #6
- Tailstock Barrel Travel: 10 inches
- Weight and Dimensions (Varies by Model):
- 34″ Swing, 72″ Between Centers: Approx. 11,857 lbs.
- 34″ Swing, 132″ Between Centers: Approx. 16,435 lbs.
- 38″ Swing, 132″ Between Centers: Approx. 14,991 lbs.
- Key Features and Benefits
- Precision-assembled headstock and gearbox for smooth, accurate operation
- Large 9-inch spindle bore allows mounting chucks on both sides of the headstock
- Factory-customizable with optional accessories dialed in for precision
- High-torque 30 HP motor for heavy-duty, high-capacity machining
- 3-V prismatic bed design ensures stability and rigidity for demanding jobs
