Description

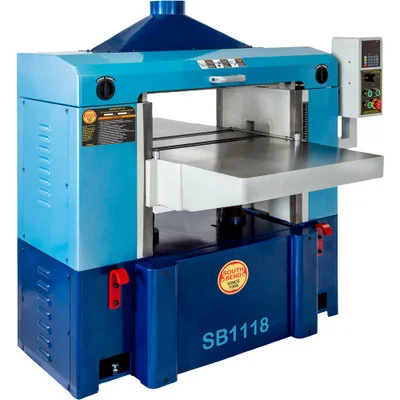

South Bend 25″ Planer with Helical Cutterhead (SB1118) offers the perfect blend of power, precision, and efficiency for demanding woodworking projects. Equipped with a robust 15 HP motor and a 6-row helical cutterhead with 174 indexable carbide inserts.
Ideal for large workshops, the South Bend 25″ Planer includes variable feed speed controlled from a pedestal-mounted dial, allowing for seamless operation at speeds from 10 to 30 FPM. With its heavy-duty, precision-ground cast-iron extension wings and anti-kickback fingers, this planer offers enhanced stability and safety.
- Specifications and Dimensions
- Main motor: 15 HP, 220V/440V*, 3-phase, 37A/18.5A
- Feed motor: 1/2 HP
- Table elevation motor: 3/4 HP
- Maximum stock width: 25″
- Maximum stock thickness: 9″
- Minimum stock thickness: 1/4″
- Minimum stock length: 10″
- Maximum cutting depth: 1/8″
- Cutterhead diameter: 3-1/2″
- Cutterhead type: 6-row helical with 174 inserts
- Cutterhead speed: 4900 RPM
- Insert size and type: 15 x 15 x 2.5mm, indexable carbide
- Feed rate: Variable, 10–30 FPM
- Table size with extensions: 25-1/8″ x 57″
- Dust port size: 6″
- Footprint: 24-1/2″ x 47-1/2″
- Overall dimensions: 54-1/2″ W x 57″ D x 54-1/2″ H
- Approximate shipping weight: 2057 lbs.
- Key Features and Benefits
- Digitally controlled table elevation with memory presets for precision adjustments
- Variable feed speed dial on control pedestal for adjustable feed rates
- Anti-kickback fingers and triple belt drive for added safety and performance
- Pedestal-mounted controls with magnetic switch and overload protection
