Description

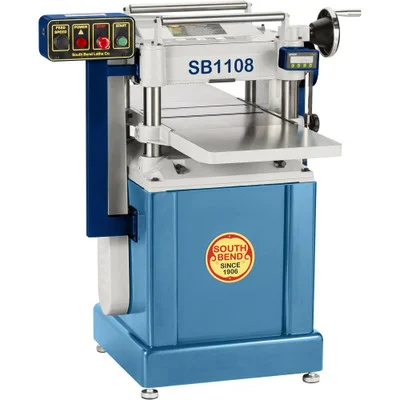

South Bend 15″ Variable-Speed Planer (SB1108) offers a superior woodworking experience with precision and power. Designed with a 3 HP motor and 4-row helical cutterhead, it delivers a smooth, clean finish on hardwood and softwood alike, making it ideal for high-volume projects.
This planer also features a digital table height scale for precise adjustments and variable feed speed control, allowing flexibility with different materials. Supported by four robust columns and equipped with anti-kickback fingers, the machine offers unmatched stability and safety.
- Specifications and Dimensions
- Motor: 3 HP, 230V, single-phase, 12A
- Maximum stock width: 15″
- Maximum stock thickness: 6″
- Minimum stock thickness: 3/16″
- Minimum stock length: 6″
- Maximum cutting depth: 1/8″
- Cutterhead diameter: 3″
- Cutterhead type: 4-row helical with 52 inserts
- Cutterhead speed: 5000 RPM
- Insert size and type: 15 x 15 x 2.5mm, indexable carbide
- Feed rate: Variable, 10–28 FPM
- Table size with extensions: 15″ x 48″
- Dust port size: 4″
- Footprint: 22-1/2″ x 23″
- Overall dimensions: 39″ W x 48″ D x 44-1/2″ H
- Key Features and Benefits
- Digital table height scale for precise adjustment
- Variable feed speed for optimal control over material finish
- 4-row helical cutterhead with 52 carbide inserts for smooth cutting
- Extra-large return rollers and precision-ground cast-iron extension wings
- Four support columns and anti-kickback fingers for stability and safety
- Drive gears run in oil bath to ensure longevity
