Description

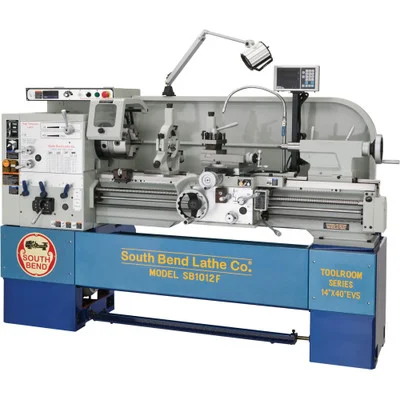

South Bend High Precision 14″ x 40″ 220V EVS Toolroom Lathe with DRO (SB1012F) is engineered for heavy-duty performance in busy industrial settings. This lathe features a powerful 5 HP motor with an Electronic Variable Speed (EVS) spindle, providing speed control from 20–2500 RPM.
Equipped with a Fagor 2-axis DRO and Japanese NSK/NTN spindle bearings, this lathe ensures precise positioning and smooth operation. With its innovative universal gearbox, users can quickly set up for inch, metric, modular, and diametral threading, making it versatile for various applications.
- Specifications and Dimensions
- Spindle Motor: 5 HP, 220V, 3-phase, 14A (with inverter)
- Oil Pump Motor: 1/4 HP, 3-phase, 1.4A
- Coolant Pump Motor: 1/8 HP, 3-phase, 0.3A
- Bed width: 10.25″
- Swing over bed: 14.17″
- Swing over cross slide: 8.38”
- Swing over saddle: 13.78″
- Swing over gap: 20.98”
- Distance between centers: 40.00″
- Cross slide travel: 9.25”
- Compound slide travel: 5.10”
- Carriage travel: 38.58”
- Spindle nose: D1-6 camlock
- Spindle bore: 2.0625″
- Spindle taper: MT#6
- Spindle speeds: electronically variable, 20-2500 RPM
- Tailstock taper: MT#4
- Tailstock quill travel: 6.00″
- Tailstock barrel diameter: 2.05″
- Overall dimensions: 91-1/2″ W x 39-1/2″ D x 59″ H
- Key Features and Benefits
- Fagor 2-axis DRO for precise positioning and measurements
- Meehanite castings and three V-way prismatic bed for stability and accuracy
- Japanese Yaskawa inverter ensures consistent, smooth torque
- Universal gearbox for inch, metric, modular, and diametral threading
- Pressurized lubrication system for headstock gears and bearings
- 4-way tool post, safety chuck guard, and micro-switch shut-off
