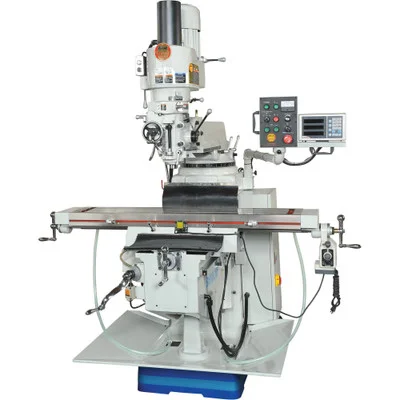

South Bend Heavy Duty 10″ x 54″ 5 HP Mill with 3 Axis DRO Power Drawbar (SB1028F) is engineered for demanding applications, featuring a robust 5 HP motor and variable speeds from 60 to 5000 RPM. Equipped with a Fagor 3-axis DRO and an Align power drawbar, this mill simplifies precision machining with rapid tool changes and accurate positioning down to 0.0002″.
This machine is constructed with Meehanite castings, hand-scraped Turcite-coated ways, and wide dovetails for ultra-smooth and precise movement. The Allen-Bradley control system and Yaskawa inverter ensure consistent and reliable performance, while the one-shot lubrication system reduces maintenance time, providing efficient operation in production settings.
- Specifications and Dimensions
- Spindle motor: 5 HP, 220V, 3-phase, 14A
- Coolant pump motor: 1/8 HP, 0.45A
- Table elevation motor: 1/4 HP, 1.95A
- Feed motor: 1/10 HP, 0.8A
- Spindle travel: 5″
- Max distance spindle to column: 26″
- Max distance spindle to table: 16-1/2″
- Longitudinal travel: 35″
- Cross travel: 16″
- Vertical travel: 14-1/4″
- Ram travel (In/Out): 19-1/2″
- Ram swivel: 360°
- Head swivel: 90°
- Head tilt: 45°
- End milling capacity: 1″
- Face milling capacity: 4″
- Table size: 10″ W x 54″ L x 3″ T
- Table T-slots: (3) 5/8″
- Table capacity: 750 lbs.
- Spindle taper: R-8
- Power drawbar
- Spindle speeds: variable, 60-5000 RPM
- Dimensions: 66″ W x 77″ D x 89″ H
- Footprint: 41-1/2″ L x 24-1/2″ W
- Key Features and Benefits
- Fagor 3-axis DRO with 0.0002″ resolution for precise measurements
- Align power drawbar for fast tool changes, boosting productivity
- Yaskawa inverter and Allen-Bradley controls for stable, consistent operation
- Turcite-coated ways and Meehanite castings for durability and smooth movement
- Variable-speed power feed on X and Z axes for enhanced control
- One-shot lubrication system reduces maintenance time
