Description

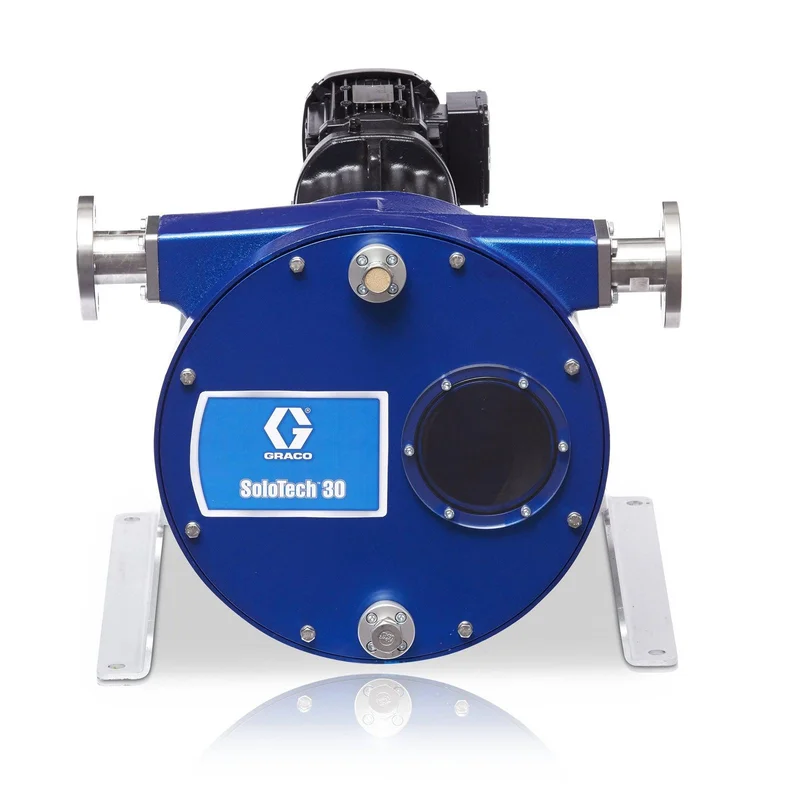

Graco’s SoloTech 30 Hose pump design utilises a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
-
Pump Construction
- Cast aluminium housing reduces pump weight
- Improved mounting flexibility with adjustable feet
-
Electric Motor
- Choose between AC and Brushless DC models
- Multiple gearbox offerings to meet your exact flow rate needs
- Hazardous location motors available
-
Brushless DC Motor
- Batch dispense mode
- Wider turndown ratio allows for larger flow range
- Maintenance reminders
-
Single Roller Design
- Single roller design improves hose life by reducing the number of compressions, temperature and friction
- Metallic roller with bearings provides constant compression and flow
-
Removable Cover
- Aluminium covers with larger sight window makes it easy to access and see internal parts
- Optional leak detector kit mounts on cover
-
Hose Barb Assembly
- Easy to install or remove – no special tools needed
- Available with PVDF and SST barbs options
- Floating flange for easy installation
- More flow per revolution than conventional designs
- Inexpensive to maintain – no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Extended hose life – only one hose compression per revolution
UPC Product: 00755652327462Family Code: FAMPPPUnit of Measure: EAHeight: 49 IN |124.46 CMLength: 27.5 IN |69.85 CMWidth: 33 IN |83.82 CMVolume: 25.734 FT3 |.729 M3Chargeable Weight: 344 LBS | 156.04 KG
Technical Specifications
| Type | Electric Peristaltic Pump |
|---|---|
| Application | Industrial |
| Barb Material | PVDF |
| Flow Rate (GPM) | 16 |
| Gear Ratio | 19.5:1 |
| Hose Diameter (cm) | 3 |
| Hose Diameter (in) | 1.2 |
| Hose Diameter (mm) | 30 |
| Hose Material | EPDM |
| Inlet Size (cm) | 3.2 |
| Inlet Size (in) | 1-1/4 |
| Inlet Size (mm) | 32 |
| Inlet Thread Type | Flange |
| Maximum Flow Rate (GPM) | 15.8 |
| Maximum Flow Rate (L/min) | 59.8 |
| Maximum Fluid Pressure (bar) | 9 |
| Maximum Fluid Pressure (kPa) | 900 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Storage Temperature (°C) | 40 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Flow Rate (GPM) | 2.675 |
| Minimum Storage Temperature (°C) | -10 |
| Minimum Storage Temperature (°F) | 14 |
| Model | SoloTech |
| Motor Type | High Speed AC |
| Outlet Size (cm) | 12.5 |
| Outlet Size (in) | 4.92 |
| Outlet Size (mm) | 125 |
| Overall Height (cm) | 77 |
| Overall Height (in) | 30.3 |
| Overall Height (mm) | 770 |
| Overall Length (cm) | 67 |
| Overall Length (in) | 26.5 |
| Overall Length (mm) | 673 |
| Overall Width (cm) | 59 |
| Overall Width (in) | 23.3 |
| Overall Width (mm) | 592 |
| Power Rating (HP) | 3 |
| Power Rating (kW) | 2.24 |
| Power Rating (W) | 2237 |
| Pump Speed (RPM) | 15-91 |
| Series | i30 |
| Standards Met | CE |
| Volume Per Cycle (gal) | 1.8 |
| Volume Per Cycle (L) | 7 |
| Housing Material | Powder Coated Aluminum |
