Description

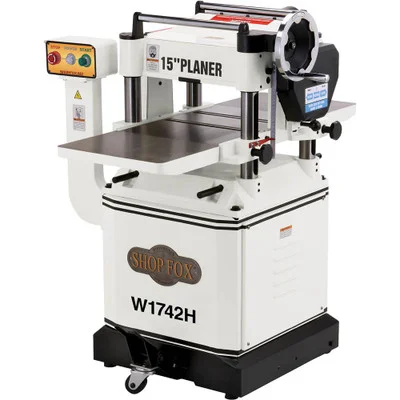

Shop Fox 15-Inch Planer with Built-In Mobile Base Helical Cutterhead Two-Speed Gearbox (W1742H) is designed to deliver superior performance and versatility in woodworking. With a 15-inch cutting width and a 3 HP motor, it handles a variety of stock sizes with ease.
The Shop Fox 15-inch planer W1742H features cast-iron extension wings, an enclosed cabinet stand, and a built-in mobile base for easy movement around the workshop. The two-speed gearbox offers flexibility in feed rates, making it suitable for both rough and finish planning tasks. This planer is a reliable choice for any woodworking enthusiast.
- Specifications and Dimensions
- Motor: 3 HP, 240V, single-phase, 15A
- Maximum cutting width: 15″
- Maximum cutting height: 8″
- Minimum stock width: 3/16″
- Minimum stock length: 8″
- Maximum cutting depth: 1/8″
- Cutterhead type: Spiral with German-made indexable carbide inserts
- Feed Rate: 16 FPM & 30 FPM
- Cutterhead diameter: 3″
- Cutterhead speed: 5,000 RPM
- Table size including wings: 42″L x 15″W x 1-3/4″T
- Number of Indexable Inserts: 74
- Approximate shipping weight: 718 lbs
- Key Features and Benefits
- 3 HP motor for powerful performance
- Helical cutterhead with carbide inserts for smooth cuts
- Two-speed gearbox for flexible feed rates
- Cast-iron extension wings for added support
- Built-in mobile base for easy movement
- Enclosed cabinet stand for stability
