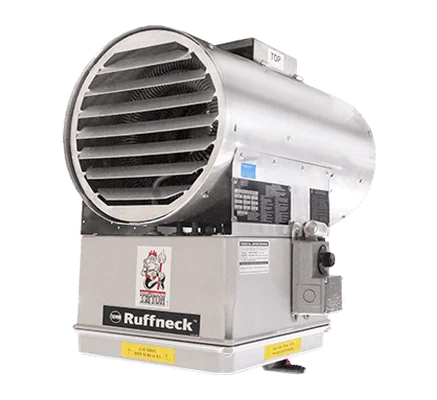

Ruffneck CR1 Triton 480V 10kW Washdown Heater (CR1-480360-100-T)

Description

The Ruffneck CR1 Triton 480V 10kW Washdown Heater (CR1-480360-100-T) is an advanced electric unit heater engineered for superior performance and longevity in non-hazardous industrial and commercial environments that necessitate frequent washdowns and exhibit corrosive conditions. As part of the pioneering CR1 Triton series, this model offers a robust heating solution from a product line recognized for being the first UL-listed Type 4X heaters.

KEY FEATURES AND BENEFITS:

• NEMA 4X Washdown Capability: The entire heater assembly is NEMA Type 4X rated, ensuring comprehensive protection against dust, dirt, and hose-directed water spray (up to 70 psi). This provides increased safety and protection against water penetration, making it ideal for regular cleaning.
• Exceptional Corrosion Resistance: Constructed with a 16-gauge stainless-steel cabinet and custom-configured stainless-steel heating elements, the heater offers better resistance to corrosion for a longer operational life in challenging environments. The epoxy-coated fan blade adds further corrosion protection.
• Efficient Forced Air Heating: Delivers 34,120 BTU/hour (10 kW) of forced air heat, ensuring effective and uniform temperature distribution throughout the space.
• Integrated Temperature Control: Features a built-in thermostat, typically adjustable from 40-110°F (4.4-43.3°C), allowing for precise climate management without external controls.
• Enhanced Safety Features: Includes a stainless-steel automatic reset temperature high-limit, increasing safety and reliability by preventing overheating.
• Versatile Mounting: Comes with a stainless-steel wall/ceiling mounting kit, providing flexible installation options and reducing field installation costs. It can be mounted up to a 45° angle.
• UL/cUL Listed: Certified for non-hazardous locations, guaranteeing adherence to stringent safety and performance standards.

SPECIFICATIONS:

• Model Number: CR1-480360-100-T
• Power Output: 10 kW
• Voltage: 480V, 3 Phase
• Heat Output: 34,120 BTU/hour
• Blower CFM: 700 cfm
• Cabinet Material: 16-gauge Type 304 Stainless Steel
• Minimum Operating Temperature: -4°F (-20°C) Ambient
• Maximum Operating Temperature: 104°F (40°C) Ambient
• Controls Voltage: 120 V

HOW TO USE:

1. Mount the Heater: Securely attach the heater to a wall or ceiling using the provided stainless-steel mounting kit. Ensure the mounting surface can support the heater’s weight and that the heater is positioned for optimal heat distribution.
2. Electrical Connection: Have a qualified electrician connect the heater to a 480V, 3-phase power supply in accordance with all local electrical codes and the product’s wiring diagram. Ensure proper grounding.
3. Set Thermostat: Adjust the built-in thermostat to your desired temperature setting. The heater will cycle on and off automatically to maintain this temperature.
4. Operational Checks: Once powered, confirm the fan operates and heat is being emitted. Monitor for any unusual noises or odors during initial operation.
5. Washdown Procedure: When cleaning the area, the heater can remain in place. Use water pressure of less than 70 psi during washdown procedures to protect the unit’s internal components and maintain its NEMA 4X rating.

BENEFITS OF USING RUFFNECK CR1 TRITON 480V 10KW WASHDOWN HEATER (CR1-480360-100-T):

• Provides consistent and efficient heating in challenging industrial settings.
• Reduces maintenance needs due to its high resistance to corrosion and water damage.
• Ensures a safer environment with integrated high-limit protection and NEMA 4X design.
• Offers flexible installation options to suit various facility layouts.
• Contributes to comfortable working conditions, improving productivity and safety.
• Built to last, offering a reliable heating solution for years in demanding applications.

FEATURES:

• Entire enclosure is NEMA Type 4X rated.
• Epoxy-coated fan blade for additional protection.
• Constructed with 16-gauge stainless-steel for cabinet.
• Includes custom-configured stainless-steel heating elements.
• Equipped with a 1/2 HP totally enclosed motor.
• Fan motor features permanently lubricated ball bearings.
• Contactor rated for 500,000 mechanical operations.
• Adjustable built-in thermostat for temperature control.
• Features a stainless-steel automatic reset temperature high-limit.
• Includes a stainless-steel wall/ceiling mounting kit.
• Control circuit operates at 120 V.
• UL and cUL listed for non-hazardous locations.
