Description
FEATURES

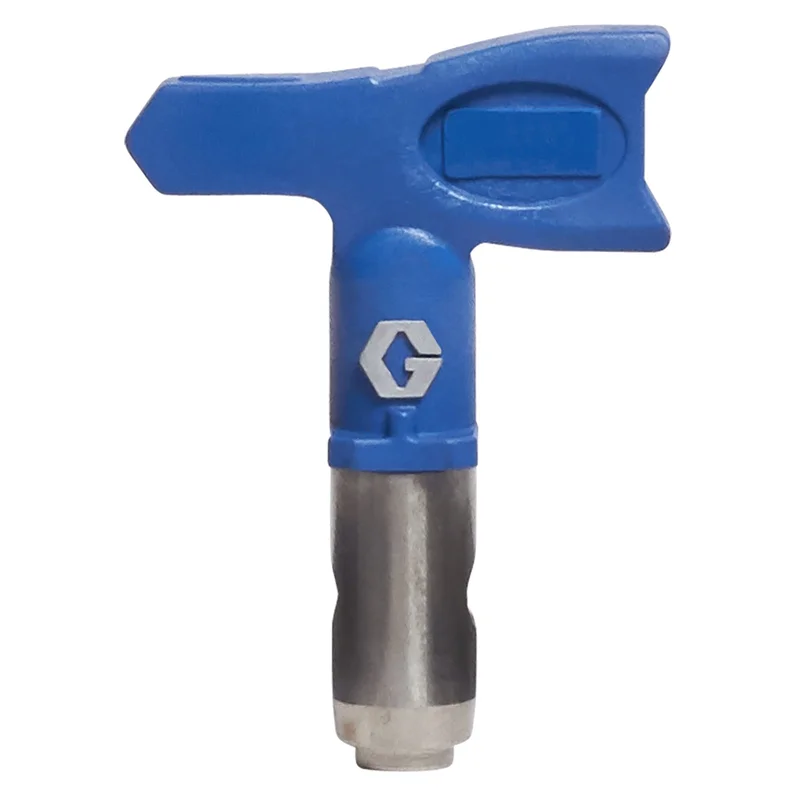

The Reverse-A-Clean (RAC) 441 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.041 inch orifice. Reverse the SwitchTip to easily clear clogs.
Used for residential, commercial or industrial applications.
- Best Tip on the Market
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
- Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
SPECIFICATIONS
Unit of Measure: EAHeight: .85 IN |2.159 CMLength: 2.75 IN |6.985 CMWidth: 5.31 IN |13.487 CMVolume: .007 FT3 |0 M3Chargeable Weight: .08 LBS | .03 KG
Technical Specifications
| ORIFICE DIAMETER (IN) | 0.041 |
|---|---|
| MAXIMUM WORKING PRESSURE (KPA) | 28000 |
| MAXIMUM WORKING PRESSURE (PSI) | 4050 |
| MAXIMUM WORKING PRESSURE (BAR) | 280 |
| COMPATIBLE MATERIAL | Lacquer to Mastic, Latex Paint |
| FOR USE WITH | RAC X 喷嘴座, RAC X ハンドタイト チップガード, RAC X HandTite Tip Guard, RAC X HandTite 팁 가드 |
| TYPE | Spray Tip |
| MAXIMUM FAN WIDTH (IN) | 8 |
| MAXIMUM FAN WIDTH (MM) | 254 |
| SPRAY PATTERN | Fan |
| TIP TYPE | Airless |
| PATTERN SIZE (IN) | 8 to 10 |
| MAXIMUM FLOW RATE (GPM) | 1.80 |
| MAXIMUM FAN WIDTH (CM) | 20 |
| MAXIMUM FLOW RATE (L/MIN) | 6.81 |
| MINIMUM FAN WIDTH (IN) | 8 |
| MINIMUM FAN WIDTH (MM) | 203 |
| PATTERN SIZE (MM) | 203.2 to 254 |
| MODEL | RAC X |
| SERIES | LTX SwitchTip |
