Description

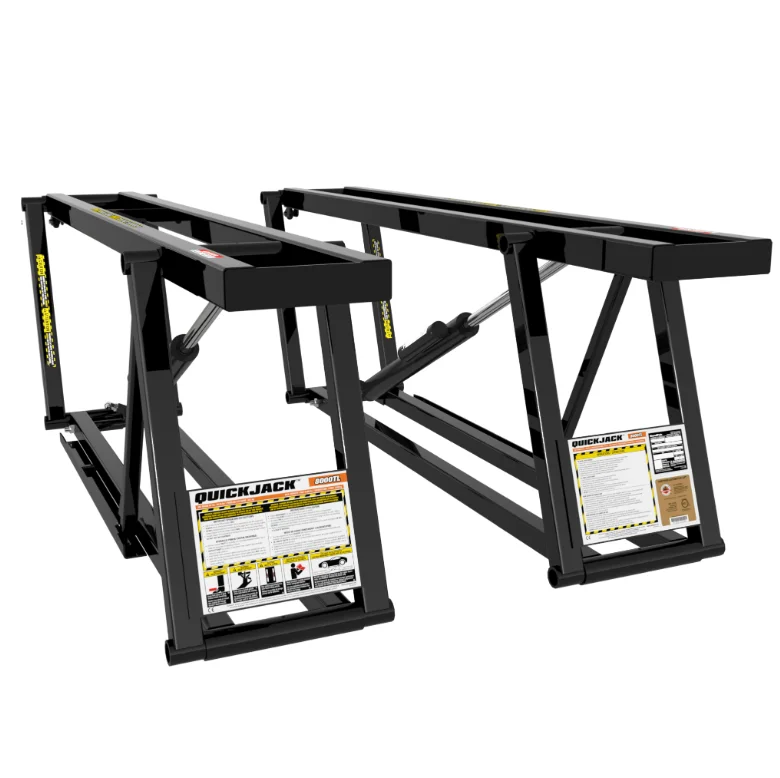

8000TL Portable Truck and SUV Lift System
The QuickJack 8000TL is the most powerful standard-length portable lift in the lineup, capable of raising up to 8,000 lbs. With a 24.25-inch lift height and a reinforced frame design, it’s purpose-built for safely lifting light-duty trucks, SUVs, and passenger vehicles with higher curb weights.
Add the optional Truck & SUV Adapter Kit to reach an impressive 27-inch lifting height—perfect for vehicles with extra ground clearance.
What’s Improved on the New TL Models vs. Previous TL Models?
The 8000TL offers a 1,000-lb capacity increase over the 7000TL and includes major upgrades to the hydraulic system and structural components.
Despite the extra power, it retains a low-profile 3.5-inch collapsed height for easy storage and use in compact spaces.
- Minimum lift point spread: 37 inches
- Frame length: 70.75 inches
Can I Purchase Frames Separately?
Yes. The 8000TL left and right frames are available for individual purchase. If you already own a compatible power unit, you can upgrade without replacing your entire system.
Just follow the proper bleeding procedure to ensure optimal performance.
Note: Frame-only kits do not include hoses, fittings, or power units.
Warranty Coverage
All QuickJack TL models include a 1-year warranty on structure and operating components.
Optional 2-year extended coverage is also available.
Key Features
Automatic Safety Locks
Dual-position automatic safety locks engage securely as the frames rise, locking at both mid-rise and full-rise heights. To release, simply flip the lock bar for a safe, controlled descent—no pins or guesswork required.
Heavy-Duty Lifting Power
With an 8,000-lb capacity and 24.25-inch lift height, the 8000TL is built to handle larger vehicles, including SUVs and light-duty trucks—without added bulk.
Upgraded Hydraulic System
The redesigned power unit features:
- Pressure-compensated flow divider
- Independent shut-off solenoids
This ensures both frames lift in perfect unison and stay balanced—even if stopped mid-cycle.
Stronger Frame, Smarter Design
- Thicker cross members
- Improved welds
- Reinforced pivot points
These upgrades reduce flex, improve alignment, and enhance long-term durability.
One-Handed Pendant Control
Raise and lower the lift effortlessly with a pendant-style controller—no manual cranking required.
Factory Preassembled Hydraulics
Arrives fully preassembled for faster setup and guaranteed performance. Just plug in and start lifting.
Portable and Easy to Store
- Collapses to 3.5 inches
- Integrated urethane wheels for easy mobility
Perfect for garages and shops with limited space.
Accessory Compatibility
Compatible with a wide range of QuickJack accessories, including:
- SUV/truck adapters
- Pinch-weld blocks
- Frame extensions
What’s Included
- 1 × 8000TL-110V Power Unit
- Left and Right Frame Assemblies
- 1 × Short Hydraulic Hose
- 2 × Long Hydraulic Hoses
- 1 × Frame-Positioning Handle

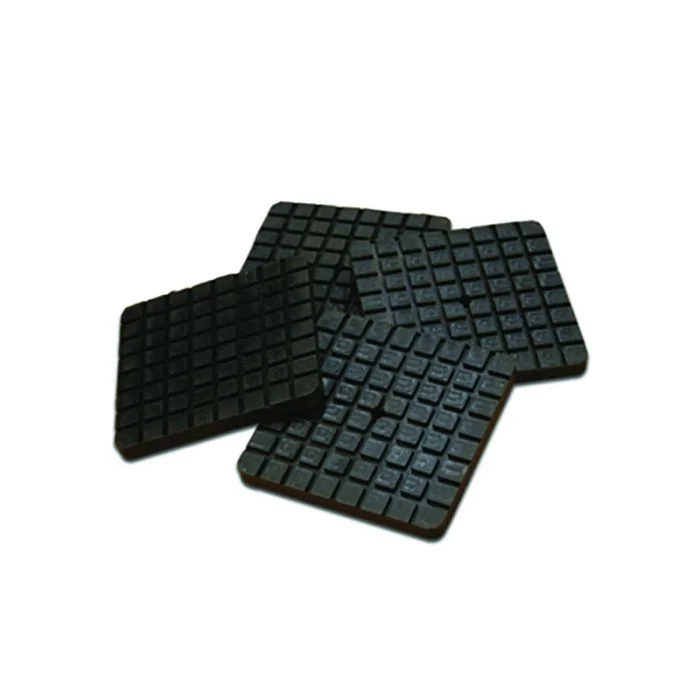

- 4 × Medium Rubber Lift Blocks
- 4 × Tall Rubber Lift Blocks
Specifications
| Shipping Weight | 118lbs |
|---|---|
| Shipping Dimensions | 74″ x 16″ x 6″ |
