Description

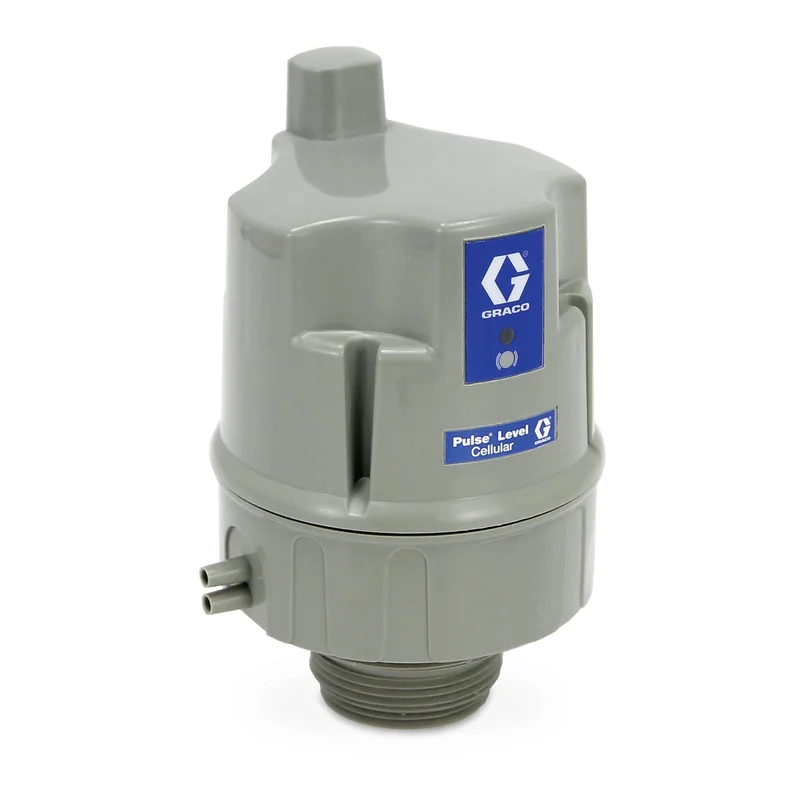

You deliver more than fluids. You are delivering insight. Graco pulse level offers highly intuitive tank-level-visibility options to help you optimise deliveries, margins and customer service. Track tank levels, capture and apply data, and assign distribution routes quickly, accurately and confidently from the industry’s leading fluid management expert. Pulse Level is compatible with 4G LTE networks, so you do not have to worry about investing in soon-to-be-obsolete technology.
- Cellular communication – no need for a local network connection.
- Long battery life – a 5 year battery life using replaceable C batteries
-
Ultrasonic sensor – measures tanks 4 m tall.
- On-demand readings – the ability to take readings at any time.
UPC Product: 00769946189766 Family Code: FAMLVL Unit of Measure: EA Height: 10.16 CM |4 IN Length: 6 IN |15.24 CM Width: 6 IN |15.24 CM Volume: .083 FT3 |.002 M3 Chargeable Weight: 1.47 LBS | .66 KG
Technical Specifications
| Weight (lb) | 1.17 |
|---|---|
| Approvals | FCC, CE |
| Battery Chemistry | Alkaline |
| Battery Size | C |
| For Use With | Pulse Level, Pulse Level, Pulse Level, Niveau d’impulsion, Pulse Level, Pulse Level, Pulse Level, Pulse Level |
| Maximum Ambient Temperature (°F) | 140 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum RF Operating Temperature (°F) | 122 |
| Maximum Storage Temperature (°F) | 140 |
| Minimum Ambient Temperature (°F) | -22 |
| Minimum RF Operating Temperature (°F) | 0 |
| Minimum Storage Temperature (°F) | -22 |
| Overall Height (in) | 5.9 |
| Overall Width (in) | 4 |
| RF Communication (GHz) | 0.85-0.9, 1.8-1.9 |
| Type | Level Sensor |
| Cylindrical Tank Maximum Height (ft) | 13 |
| Cylindrical Tank Maximum Volume (gal) | 999999 |
| Fluid Level Measurement Accuracy (%) | +/-1 in. (+/- 2 cm) |
| Number of Batteries | 4 |
| Obround Tank Maximum Height (ft) | 13 |
| Obround Tank Maximum Length (ft) | Any |
| Obround Tank Maximum Volume (gal) | 999999 |
| Obround Tank Maximum Volume (L) | 999999 |
| Vertical Tank Maximum Height (ft) | 13 |
| Vertical Tank Maximum Volume (gal) | 999999 |
| Product Type | Tank Level Monitor (TLM) |
| Vertical Tank Maximum Volume (L) | 999999 |
| Weight (kg) | 0.531 |
| Minimum Storage Temperature (°C) | -30 |
| Maximum Storage Temperature (°C) | 60 |
| Cylindrical Tank Maximum Volume (L) | 999999 |
| Cylindrical Tank Maximum Height (m) | 4 |
| Vertical Tank Maximum Height (m) | 4 |
| Obround Tank Maximum Height (m) | 4 |
| Obround Tank Maximum Length (m) | Any |
| Maximum Operating Temperature (°C) | 50 |
| Overall Height (cm) | 15 |
| Overall Height (mm) | 150 |
| Overall Width (cm) | 10.1 |
| Overall Width (mm) | 101 |
| Overall Height (ft) | 0.49 |
| Overall Height (m) | 0.015 |
| Overall Length (cm) | 9.3 |
| Overall Length (ft) | 0.305 |
| Overall Width (ft) | 0.333 |
| Battery Life (h) | 5 years |
| Overall Length (in) | 3.66 |
| Overall Length (m) | 0.093 |
| Overall Length (mm) | 93 |
| Overall Width (m) | 0.0101 |
| Model | Pulse |
