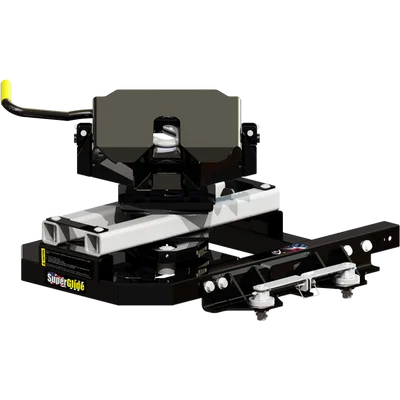

PullRite ‘10-24 Ford OE Puck Series 20K SuperGlide Hitch (2914)

Description

The PullRite 10-24 Ford OE Puck Series 20K SuperGlide Hitch (2914) is a high-capacity, automatically sliding fifth-wheel hitch designed specifically for Ford trucks equipped with the factory OEM puck system. This hitch provides superior maneuverability and towing confidence, especially for larger fifth-wheel trailers. The 2914 boasts heavier-duty components compared to the 2714 model, making it ideal for handling the increased torque of heavier loads.

KEY FEATURES AND BENEFITS:

• High Towing Capacity: Handles up to 20,000 lbs gross trailer weight and 5,000 lbs pin weight.
• Automatic Sliding Action: 14″ of automatic slide for 90-degree turns, eliminating the risk of cab and trailer damage. No manual adjustments are needed.
• Direct Puck System Mount: Attaches directly to Ford’s OEM puck system – no adapter rails required.
• Effortless Removal: The hitch head removes easily without tools for convenient storage. The mounting posts are also removable.
• Smooth Towing: Dual articulating head minimizes chucking and provides a smoother ride.
• Secure Connection: Features a locking jaw, an automated secondary locking device, and an automatically locking kingpin jaw for a safe and secure connection.
• User-Friendly Operation: Extended release handle keeps you out of the truck bed.

SPECIFICATIONS:

• Max Gross Trailer Weight: 20,000 lbs
• Max Trailer Pin Weight: 5,000 lbs
• Slide Travel: 14″
• Mounting Style: Direct to OEM Puck System
• Hitch Height: 18.5″ (to top of hitch plate)
• Weight (Hitch Head): Approximately 40 lbs
• Compatibility: Ford trucks with OEM puck system
• Capture Plate: Required (sold separately)
• Warranty: 5-year limited

HOW TO USE:

• Prepare Your Truck: Ensure your Ford truck is equipped with the OEM puck system.
• Install the Hitch: Attach the base assembly to the truck’s puck system following the provided instructions. Fine-tune the OE puck handles for proper fit using the premium hardware.
• Attach the Hitch Head: Secure the hitch head to the base assembly using the pins and clips. No tools are needed.
• Connect the Trailer: Position your fifth-wheel trailer and connect it to the hitch, ensuring the kingpin is properly engaged and the locking mechanisms are secure.
• Install Capture Plate: Install the correct capture plate for your pin box.
• Test and Adjust: Check all connections and perform a test tow in a controlled environment. Adjust the tension bolt to minimize chucking, if necessary.

BENEFITS OF USING THE PULLRITE 10-24 FORD OE PUCK SERIES 20K SUPERGLIDE HITCH (2914):

• Enhanced Maneuverability: The automatic sliding mechanism allows for tight turns without damaging your truck or trailer.
• Simplified Operation: Easy installation, removal, and hitching process.
• Safe and Secure Towing: Multiple locking mechanisms ensure a secure connection between truck and trailer.
• Smooth and Comfortable Ride: The dual articulating head minimizes chucking and provides a smoother towing experience.
• Durable and Reliable: Built with high-quality materials for long-lasting performance.

FEATURES:

• Laser-cut jaw components: cradle the kingpin at 140º.
• Adjustable tension bolt.
• No secondary locking devices: to engage.
• Adjustable front-to-back: to center over the axle.
• Dual articulating head: for smoother towing.
• Extended handle: for easy operation.
• Removable mounting post assemblies.
• SAE J2638 tested.
• Made in the USA.
