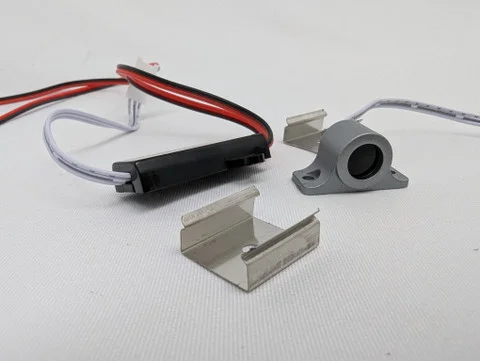

Phoenix USA Proximity Sensor Door Switch (PLSW)

Description

The Phoenix USA Proximity Sensor Door Switch (PLSW) offers a practical and efficient solution for automating the lighting within toolboxes and compartments. Designed for seamless integration with Phoenix USA’s PLSL series LED strip lights, this non-contact sensor provides hands-free illumination, activating the lights automatically when the door or access panel is opened and deactivating them when closed. This simple yet effective system enhances convenience, improves visibility within enclosed spaces, and contributes to energy conservation by ensuring lights are only on when needed. The PLSW is an ideal accessory for anyone seeking to optimize the lighting in their tool storage, utility compartments, or similar enclosed areas.

KEY FEATURES AND BENEFITS:

• Automatic Illumination: Provides hands-free lighting activation, turning on compatible LED strip lights as soon as the door or compartment is opened.
• Energy Efficient: Ensures that lights are only active when the compartment is in use, automatically switching off when the door is closed, thus saving power and extending the lifespan of the LED strips.
• Seamless Integration: Specifically designed to work with Phoenix USA PLSL series LED strip lights (PLSL06, PLSL12, PLSL24, PLSL36, PLSL48), ensuring optimal performance and compatibility.
• Non-Contact Operation: Utilizes proximity sensing technology, eliminating the need for physical contact with the door or switch, leading to increased reliability and longevity.
• Easy Installation: Designed for straightforward mounting and connection to the compatible LED strip lights, allowing for quick and hassle-free setup.
• Enhanced Convenience: Improves usability and accessibility of toolboxes and compartments by providing immediate and automatic illumination when needed.
• Versatile Application: Suitable for a wide range of toolbox and compartment lighting applications in various settings, including workshops, vehicles, and storage units.

SPECIFICATIONS:

• Product Name: Phoenix USA Proximity Sensor Door Switch
• Model Number: PLSW
• Compatibility: Phoenix USA PLSL06, Phoenix USA PLSL12, Phoenix USA PLSL24, Phoenix USA PLSL36, Phoenix USA PLSL48 LED Strip Lights

HOW TO USE:

1. Identify Mounting Location: Choose a suitable location for the proximity sensor switch near the opening of your toolbox or compartment door. Ensure the sensor will be able to detect the door’s open and closed states effectively.
2. Mount the Sensor: Securely mount the Phoenix USA Proximity Sensor Door Switch (PLSW) using the provided mounting hardware (screws, adhesive, or other method depending on the design).
3. Connect to LED Strip Lights: Connect the wiring from the PLSW to the power input of your Phoenix USA PLSL series LED strip lights (PLSL06, PLSL12, PLSL24, PLSL36, or PLSL48). Ensure correct polarity and secure connections. Refer to the wiring diagrams for both the sensor and the LED strip lights.
4. Position the Door/Actuator (if applicable): If the sensor requires a separate actuator (like a magnet for a magnetic reed switch), ensure it is properly positioned on the door so that it interacts with the sensor when the door opens and closes.
5. Test the Operation: Open and close the toolbox or compartment door to verify that the LED strip lights turn on automatically when the door is opened and turn off automatically when the door is closed. Adjust the sensor position or actuator if necessary to achieve reliable operation.

BENEFITS OF USING PHOENIX USA PROXIMITY SENSOR DOOR SWITCH (PLSW):

• Provides hands-free and instant illumination, making it easier to see and access contents within toolboxes and compartments.
• Contributes to energy savings by automatically turning off lights when not needed, reducing power consumption.
• Extends the lifespan of the compatible LED strip lights by preventing unnecessary operation.
• Offers a convenient and user-friendly lighting solution without the need to manually switch lights on and off.
• Enhances safety by providing immediate visibility, reducing the risk of accidents or fumbling in the dark.
• Maintains a clean and organized workspace by ensuring lights are not left on accidentally.

FEATURES:

• Automated Lighting Control: Activates lights based on the open or closed state of a door or panel.
• Designed for PLSL Series: Specifically engineered for optimal performance with Phoenix USA PLSL06, PLSL12, PLSL24, PLSL36, and PLSL48 LED strips.
• Simple Integration: Allows for easy connection and setup with compatible Phoenix USA LED lighting.
• Space-Saving Design: Compact form factor allows for discreet and convenient mounting.
• Increased Efficiency: Helps conserve energy by ensuring lights are only on when required.
• Improved Accessibility: Provides immediate illumination for better visibility inside enclosed spaces.
